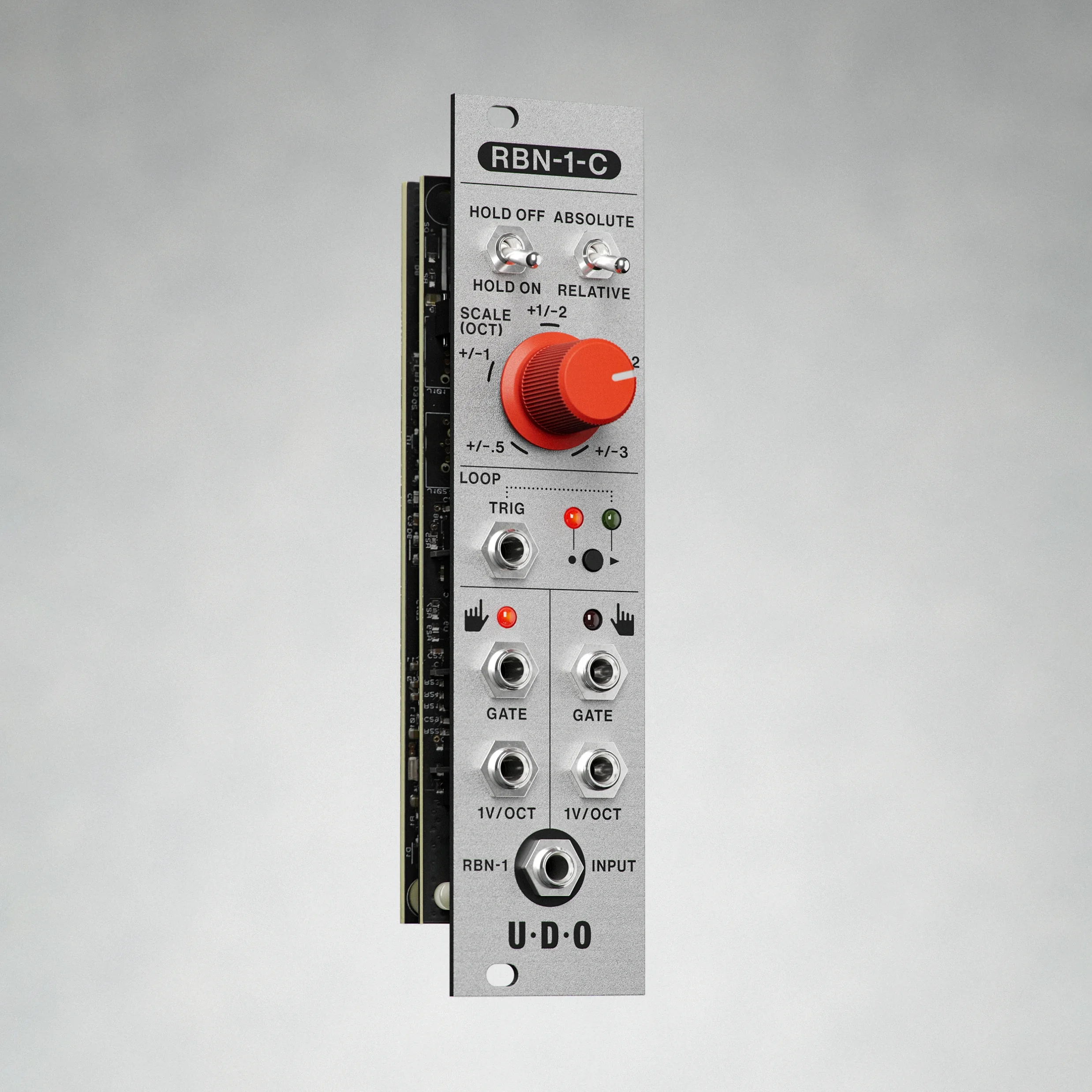

01 RBN-1-C is a powerful Eurorack interface designed specifically for the RBN-1 Performance Ribbon Controller. Connect your expressive RBN-1 ribbon to any modular rig and make use of a host of flexible performance features, including a live looper with trig input, ribbon mode controls and two-touch CV/Gate outputs.

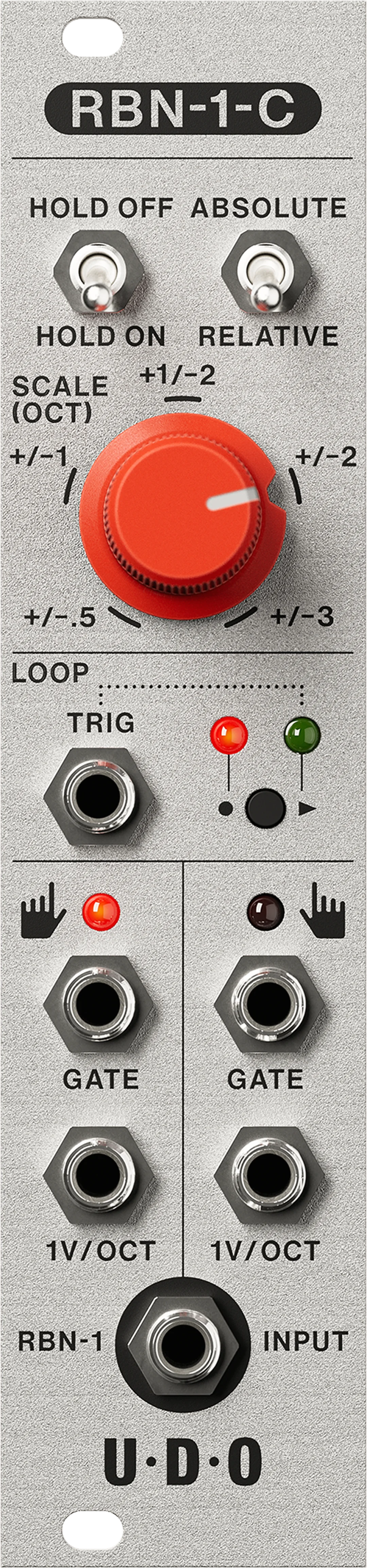

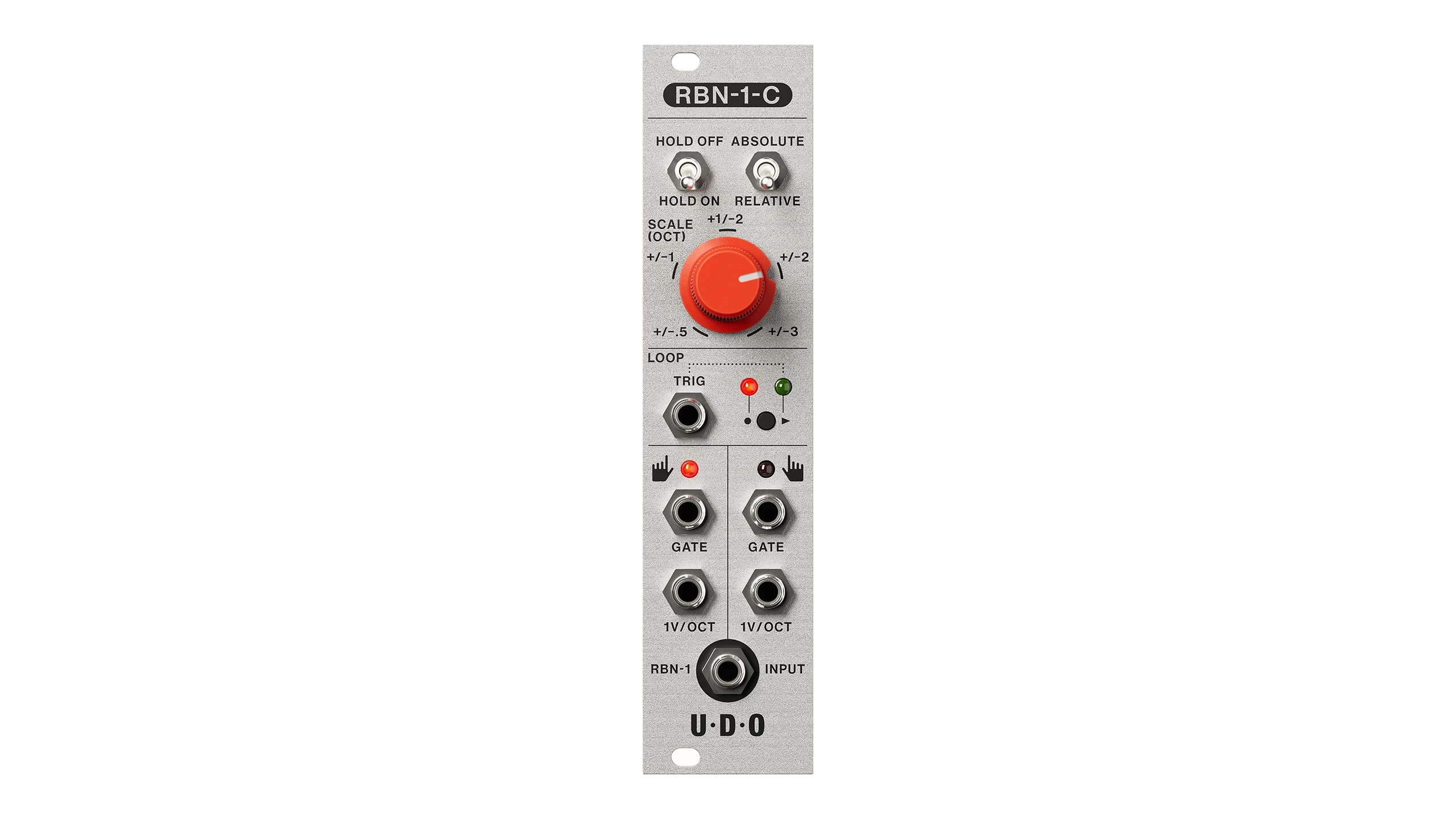

RBN-1-C Front

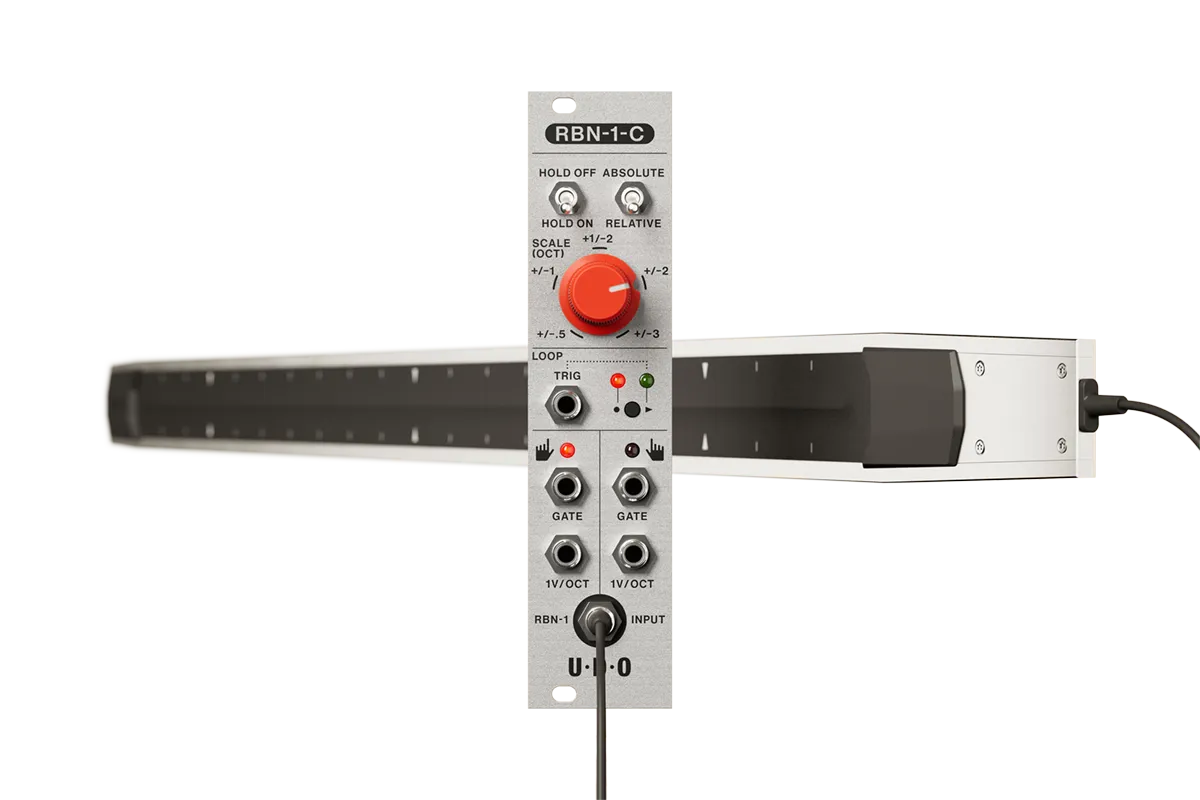

RBN-1-C With RBN-1 Ribbon

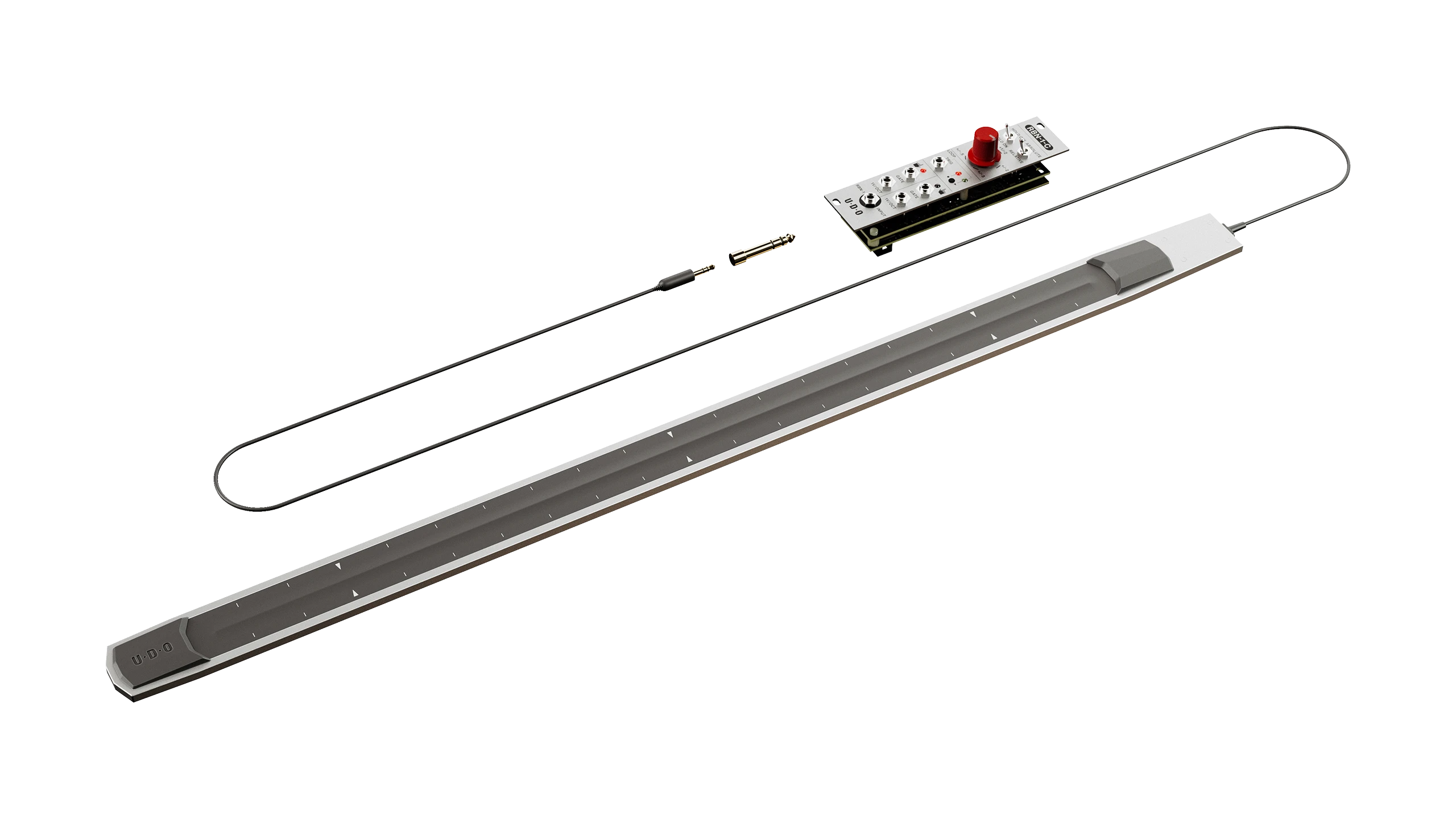

RBN-1-C & RBN-1 Complete Set
Custom Ribbon Behaviour
Flexible behaviour controls allow you to fine-tune the touch response and octave scaling of the ribbon input to fit your specific setup or playing style.
Two-Touch Outputs
Send two simultaneous CV & gate outputs from the two output sections, allowing for two handed expressions using the ribbon. For example, modulate an oscillator pitch with your left hand whilst modulating a filter cutoff with your right!
Live Looper
The built in looper allows you to quickly and easily record and loop ribbon expressions on the fly. Use the optional trig input to trigger playback loops and keep your ribbon jams synced up.
02
Key Features
Pair With RBN-1 Ribbon.
RBN-1-C is designed specifically to be paired with RBN-1, our performance ribbon controller. Easily attach and detach the RBN-1 to any metal surface using its strong magnets and non-slip base, ensuring the ribbon stays securely in place during use. Constructed from a milled aluminium base and premium components, the RBN-1 is designed for durability and long-lasting performance.
05
Tech Spec
RBN-1-C Technical Specifications
Overview
Dimensions (L/W/D): 581 x 35 x 8.6mm (not including cable)
Cable Length: 1.2m
Connections: 3.5mm TRS plug or 6.35mm TRS plug (adapter included)
Construction: Milled aluminium housing, soft-touch surface with low friction, non-slip rubber base, magnetic base
Maximum voltage: 30V
Connection Type: 3.5mm TRS plug with 6.35mm stereo TRS adapter; tip: wiper, ring: right end (connector), sleeve: left end
Potentiometer Impedance: 20kΩ
Potentiometer Taper Type: Linear
