01 RBN-1 is a touch-sensitive performance ribbon controller. Introducing an additional level of tactile expression to any performance, RBN-1’s finely tuned surface responds precisely to both wide sweeps and subtle vibrato flourishes. With a solid metal housing, soft-touch ribbon surface, and rubber backing with magnetic attachment, RBN-1 is robust and ready to play. Pair it with our RBN-1-C Eurorack receiver module to connect to any modular setup, including two-touch control and live looper.

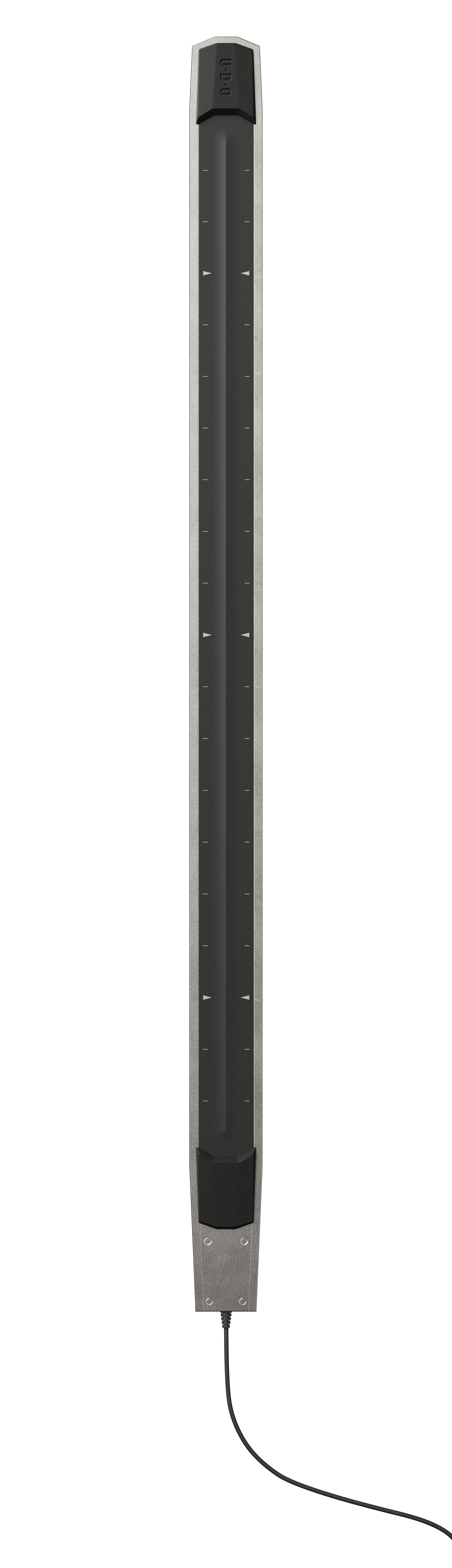

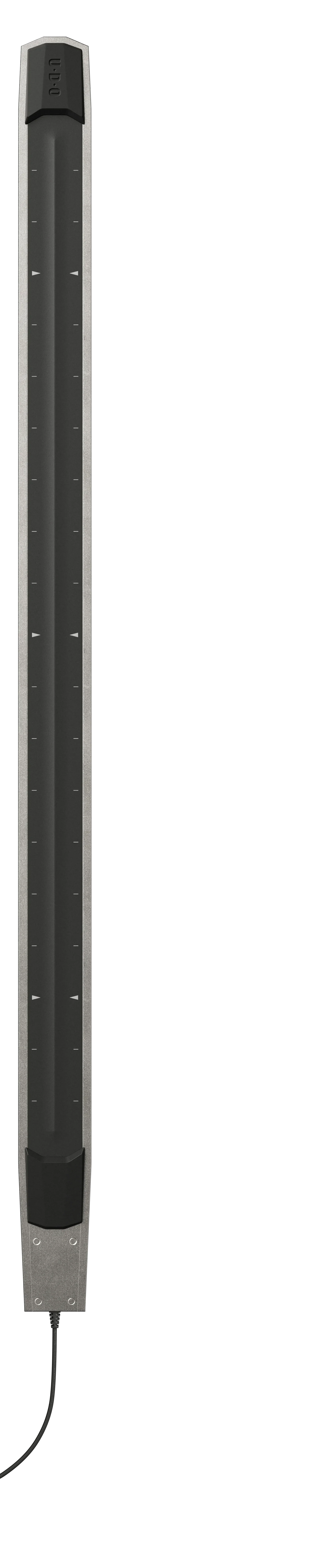

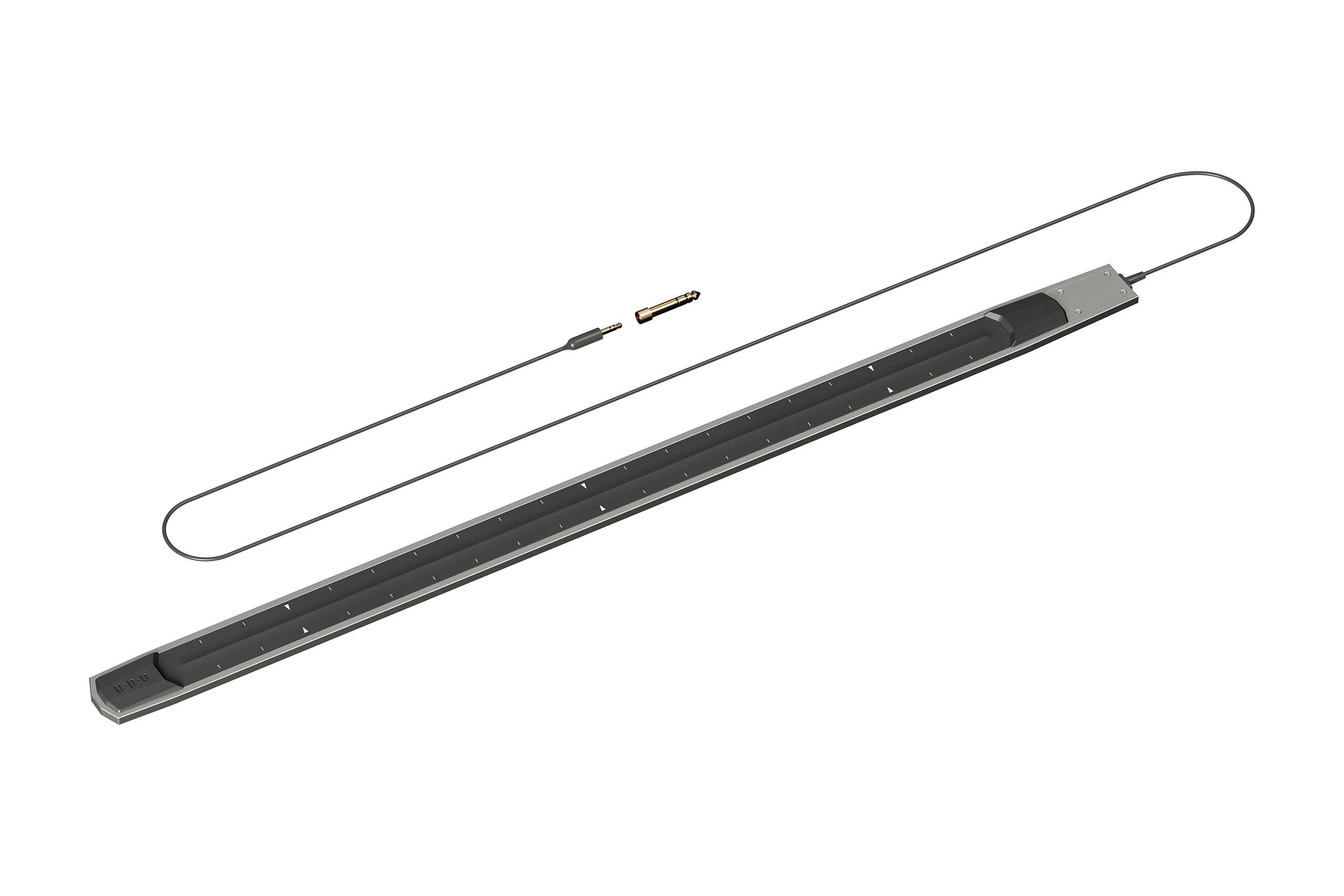

RBN-1 With Cable

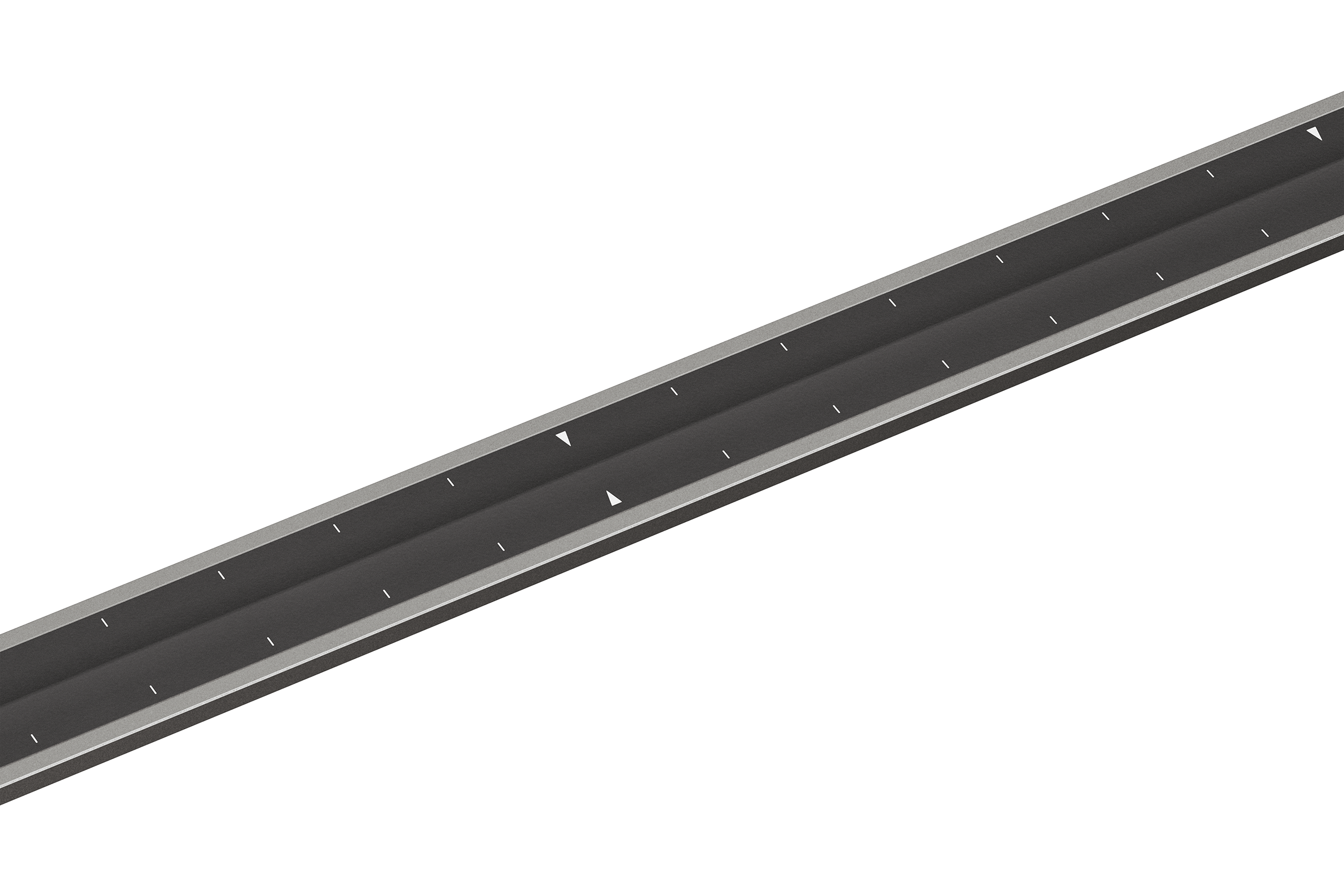

RBN-1 Surface

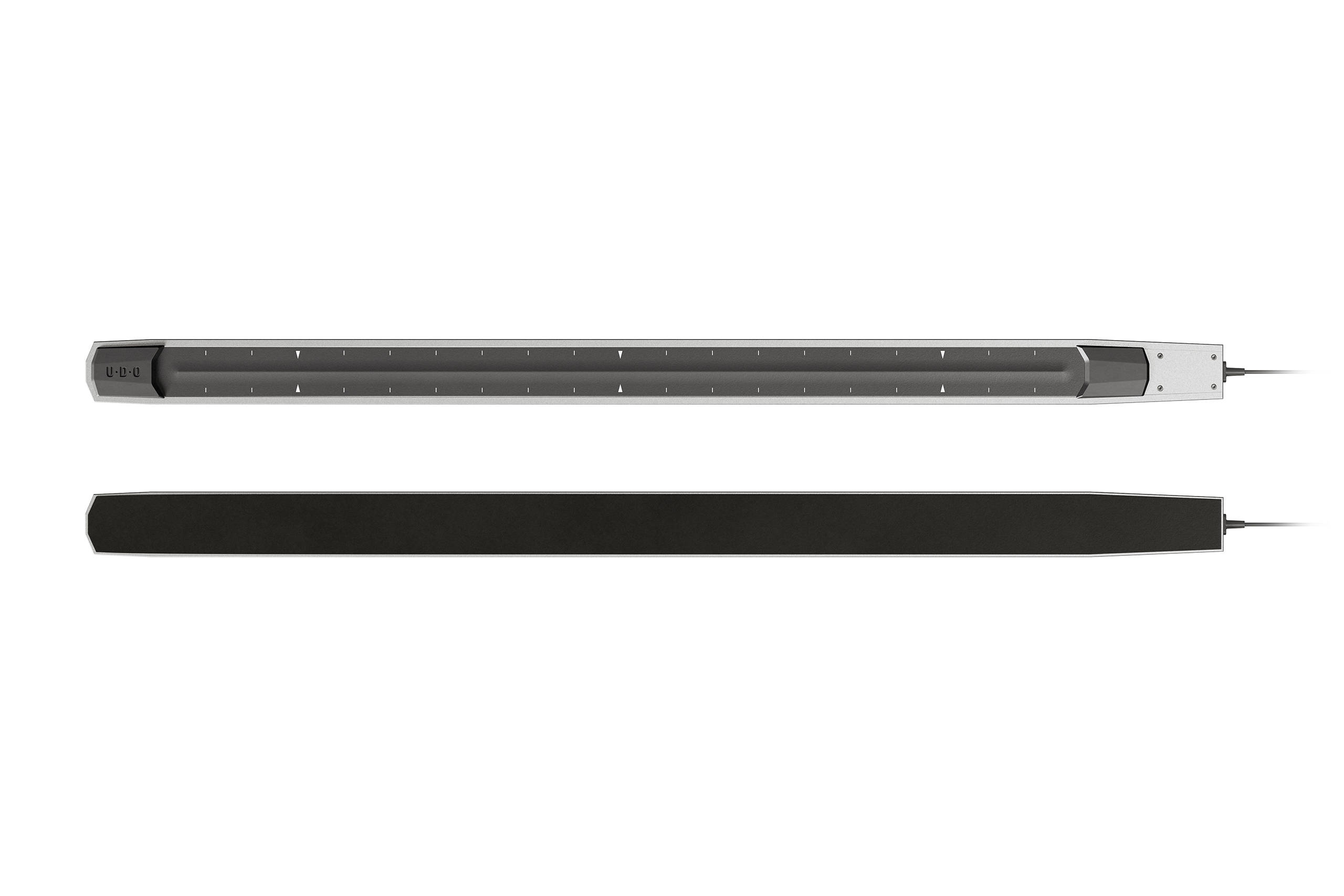

RBN-1 Front & Back

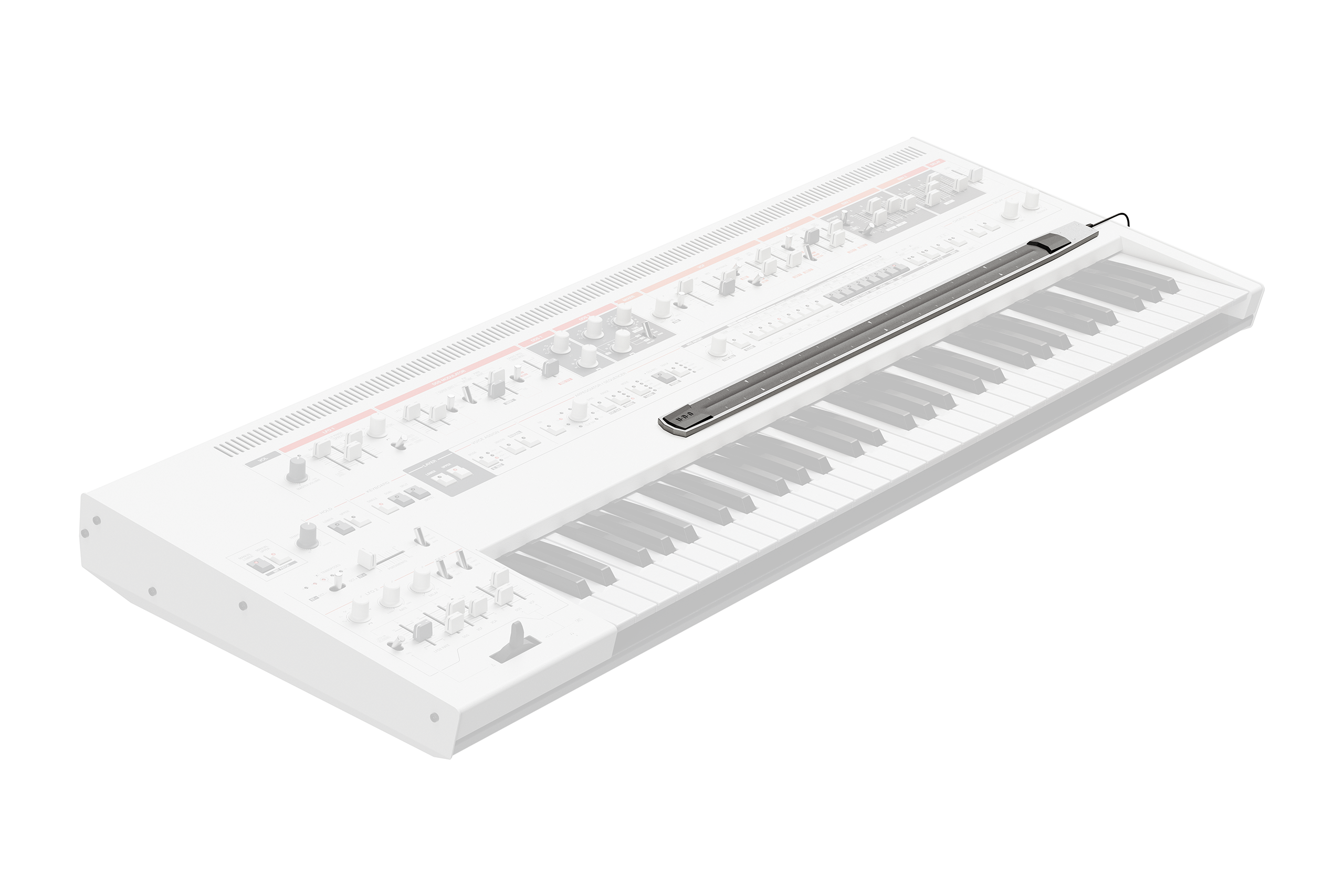

RBN-1 With Super 6

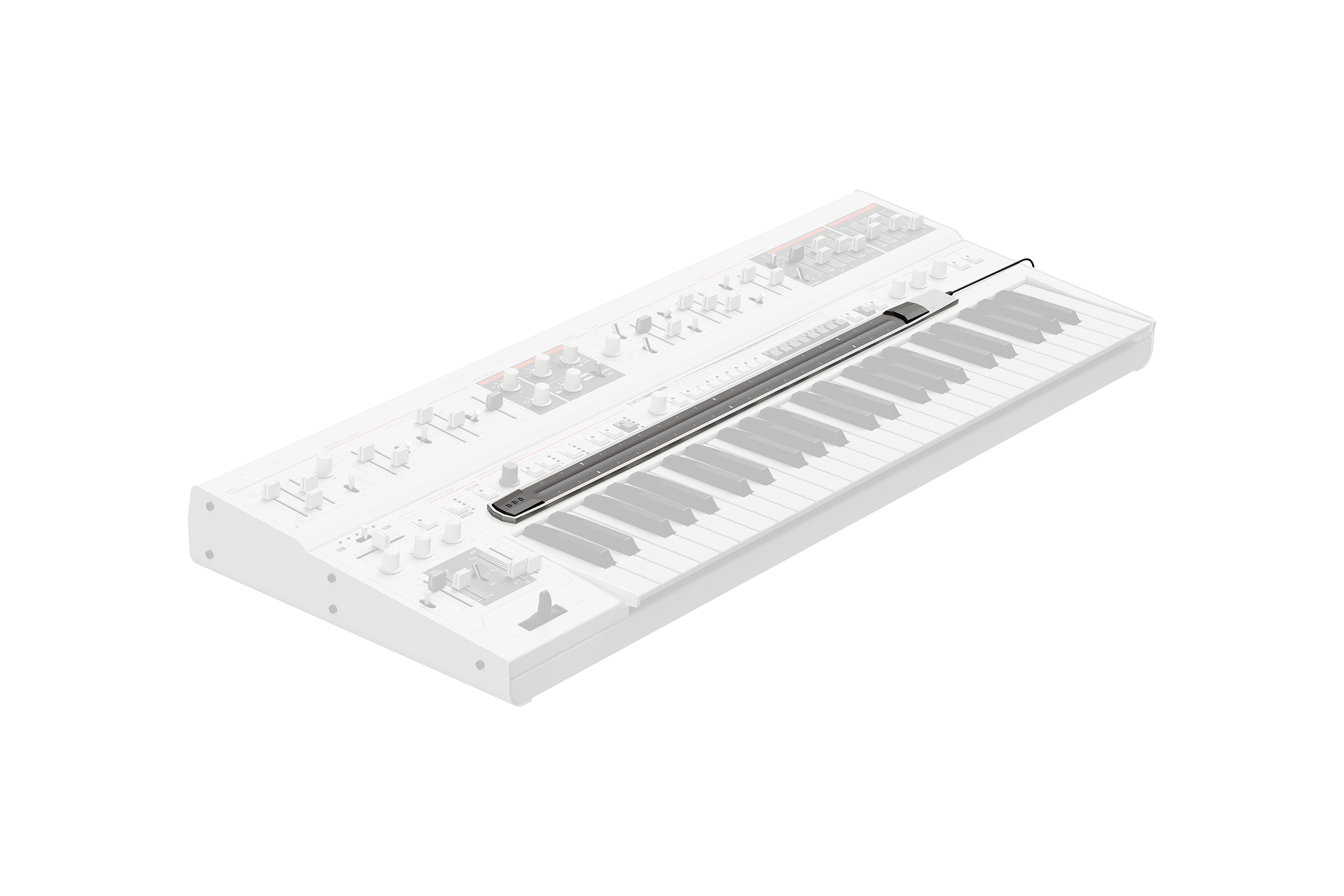

RBN-1 With Super 8
Get in Touch With Your Sound
The RBN-1 Ribbon Controller provides an effortless and tactile way of modulating your sound, featuring an adaptive bend behaviour that allows you to pitch bend notes several octaves according to the original note you played. The high-sensitivity and responsiveness of the controller surface also allows for subtle vibrato effects and fine pitch modulation. This hands-on technique opens up opportunities to easily and quickly create epic modulation sweeps, pitch bends and vibrato flourishes on the fly.
Universal Connection
RBN-1 works with any device that has an expression pedal input - connect via 3.5mm TRS jack or 1/4 inch TRS jack using the included adapter. When used with the Super 6 and Super 8, the ribbon strip utilizes UDO’s effortlessly musical intelligent pitch expression method, bending only the currently held note or notes, without affecting sustained sounds or reverb tails.
Magnetic Attachment, Robust Build
Easily attach and detach the RBN-1 to any metal surface using its strong magnets and non-slip base, ensuring the ribbon stays securely in place during use. Constructed from a milled aluminium base and premium components, the RBN-1 is designed for durability and long-lasting performance.
Dimensions L/W/D: 581 x 35 x 8.6mm (not including cable)
Connections: 3.5mm TRS jack
1/4 inch TRS jack with adapter.
Cable length: 1.2m
Construction: Milled aluminium housing, soft-touch low-friction ribbon surface, non-slip rubber backing, magnetic base for attaching to metal surfaces
02
Key Features
Go Modular.

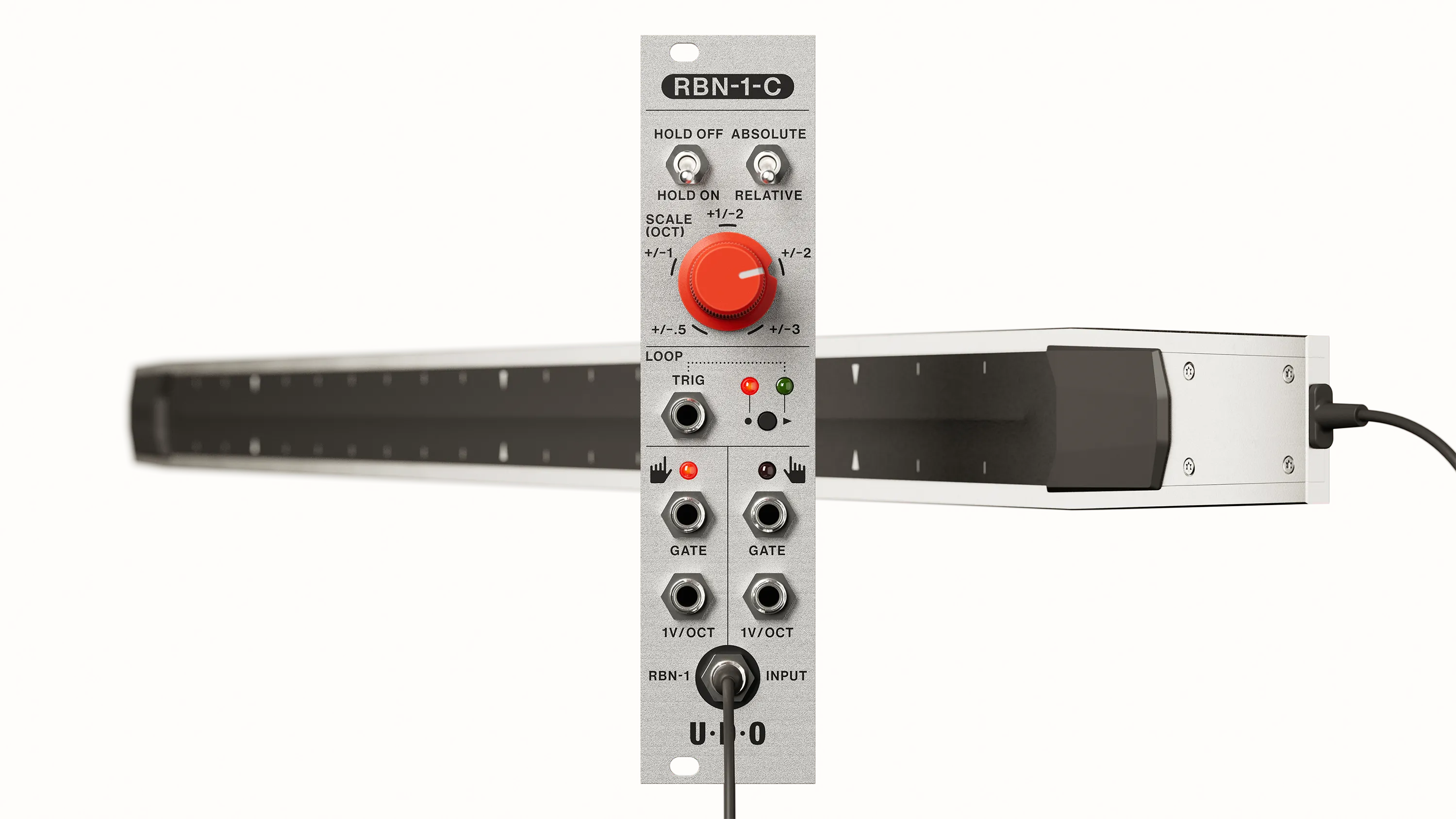

Connect your RBN-1 to any Eurorack modular rig with RBN-1-C, a powerful Eurorack interface designed specifically for the RBN-1 Performance Ribbon Controller. With flexible performance features, a live looper with trig input, and two-touch CV / Gate outputs.
05
Tech Spec
RBN-1 Technical Specifications
Overview
Dimensions (L/W/D): 581 x 35 x 8.6mm (not including cable)
Cable Length: 1.2m
Connections: 3.5mm TRS plug or 6.35mm TRS plug (adapter included)
Construction: Milled aluminium housing, soft-touch surface with low friction, non-slip rubber base, magnetic base
Maximum voltage: 30V
Connection Type: 3.5mm TRS plug with 6.35mm stereo TRS adapter; tip: wiper, ring: right end (connector), sleeve: left end
Potentiometer Impedance: 20kΩ
Potentiometer Taper Type: Linear
