01 DMNO ON is the full-featured 8-voice, 2-part multi-timbral DMNO synthesizer in a compact desktop format. Built around two independent analog-hybrid synth engines, it retains DMNO’s highly flexible signal architecture, with each engine featuring our new Dynamic Multi-Core Stereo VCF. Eight creative Play Modes unlock dynamic interactions between the two timbres at the touch of a single control, while its flexible analog and digital audio connectivity make it a truly expansive and immediate sound design sandbox.

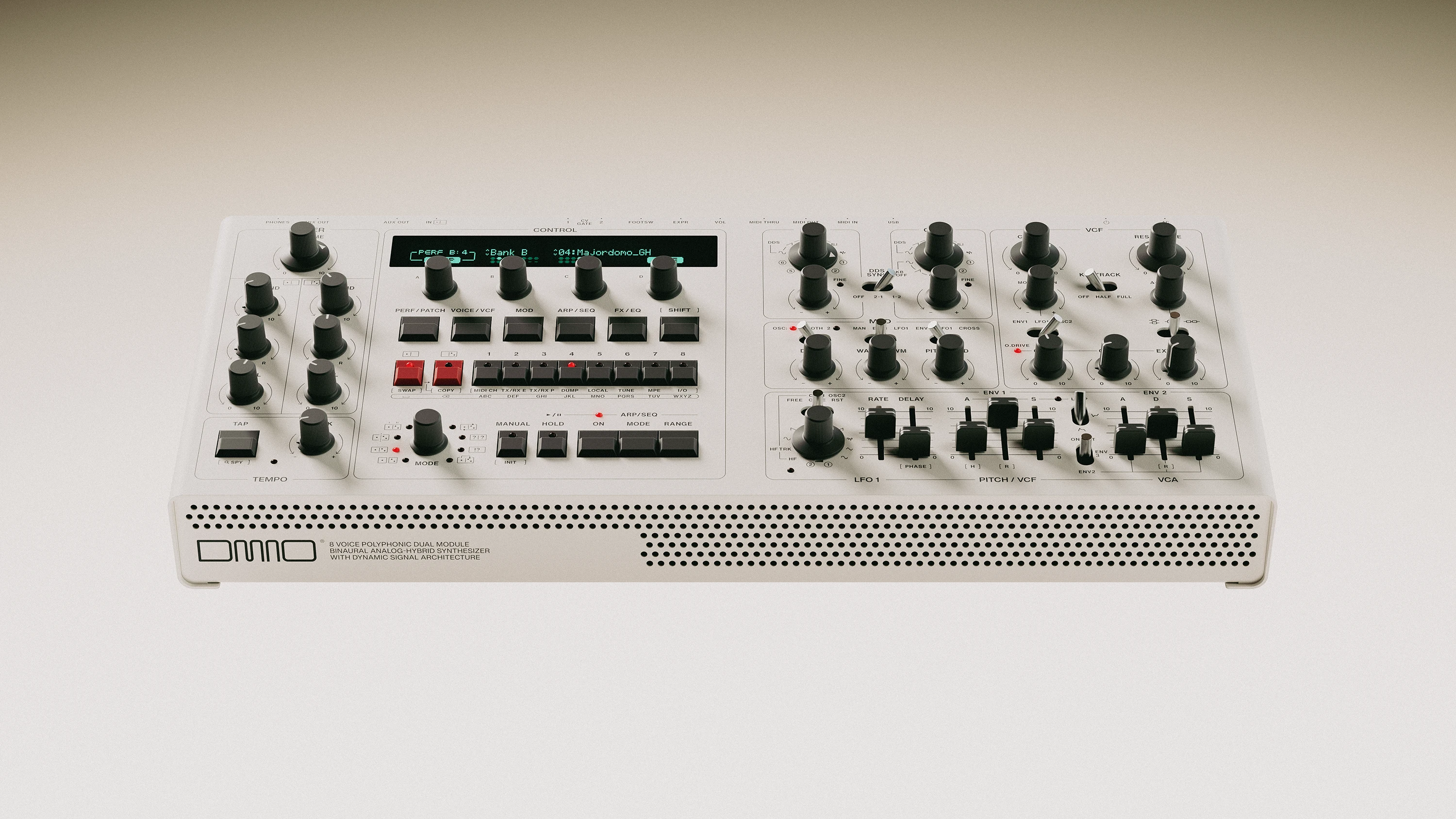

DMNO ON
And On. And On.
Find a Dealer

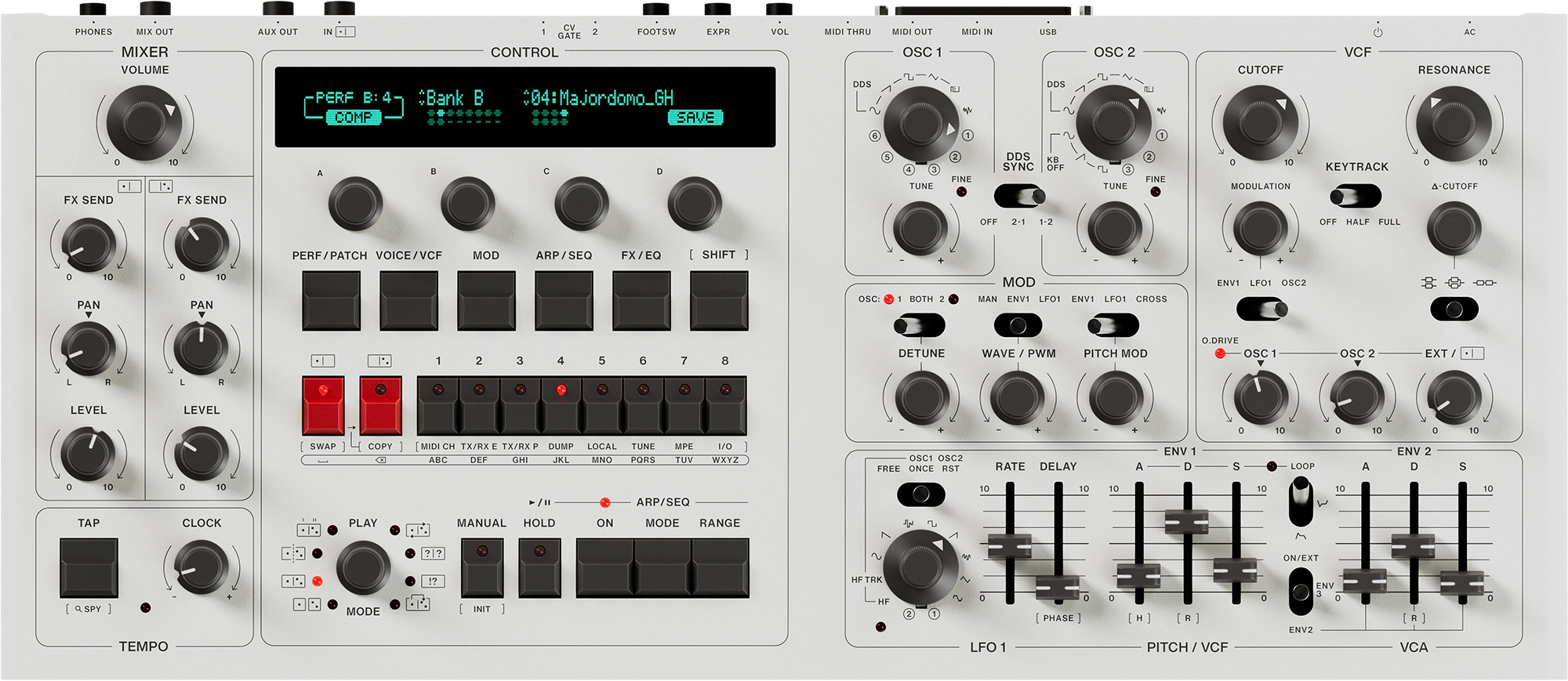

DMNO ON — Top Down

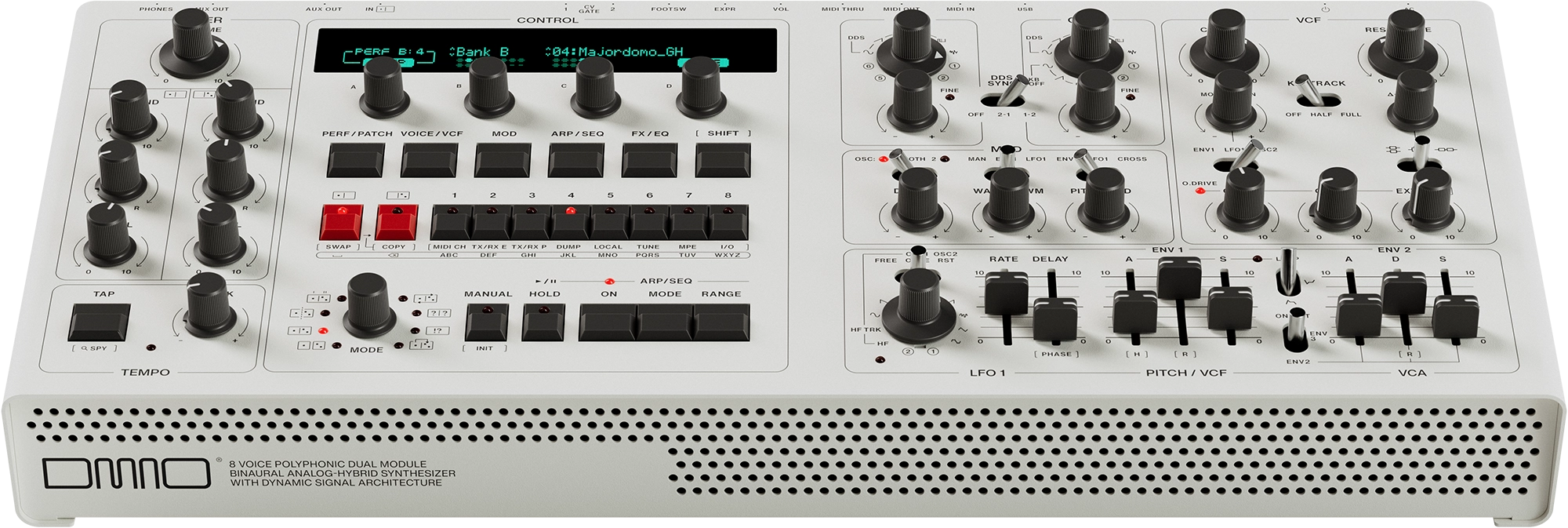

DMNO ON — Player View

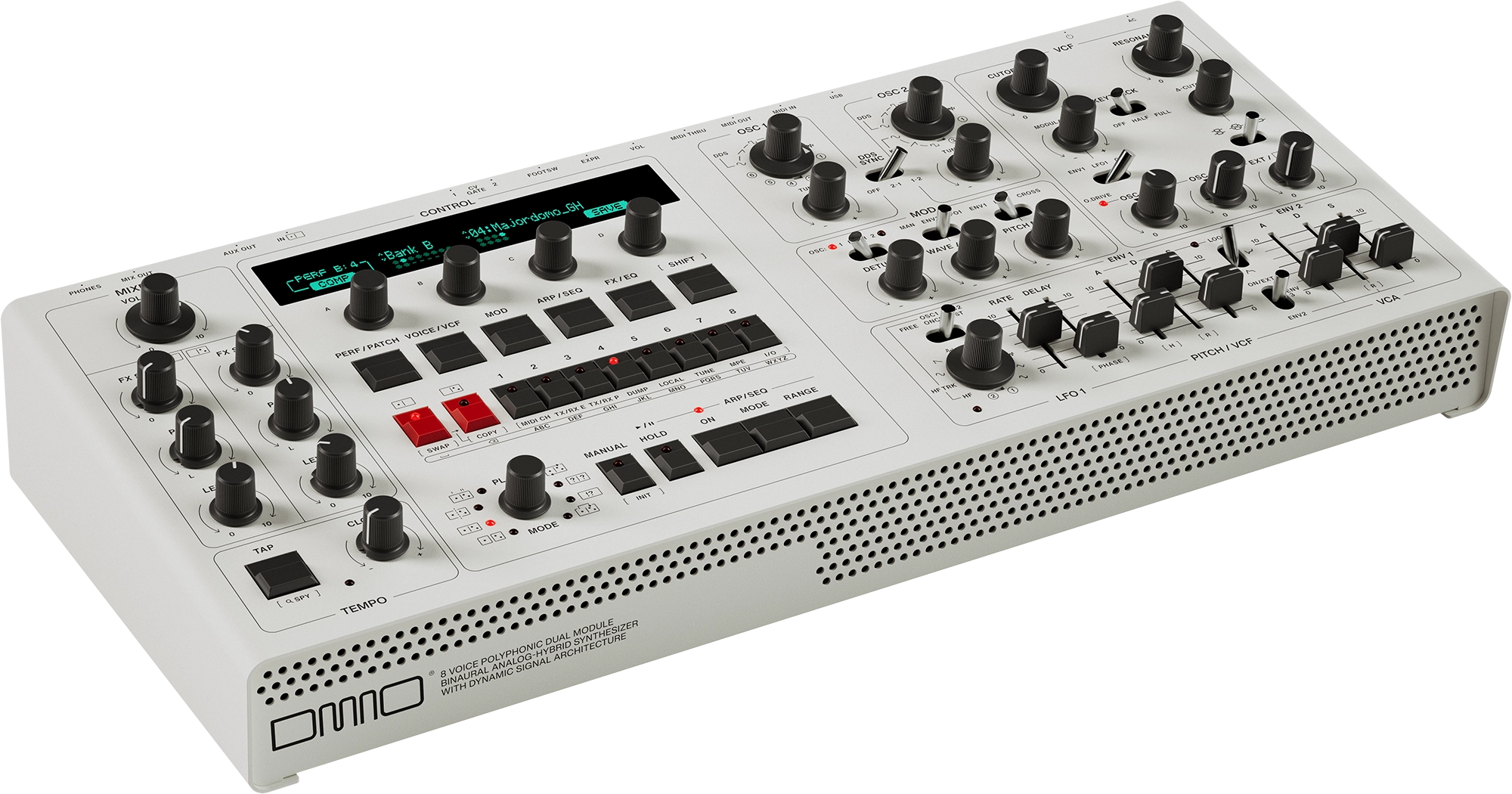

DMNO ON — Angle Left
DMNO Player View — Black Edition
ONM-1 Synth Control — Optional Expander Module
ONM-2 FX Control — Optional Expander Module

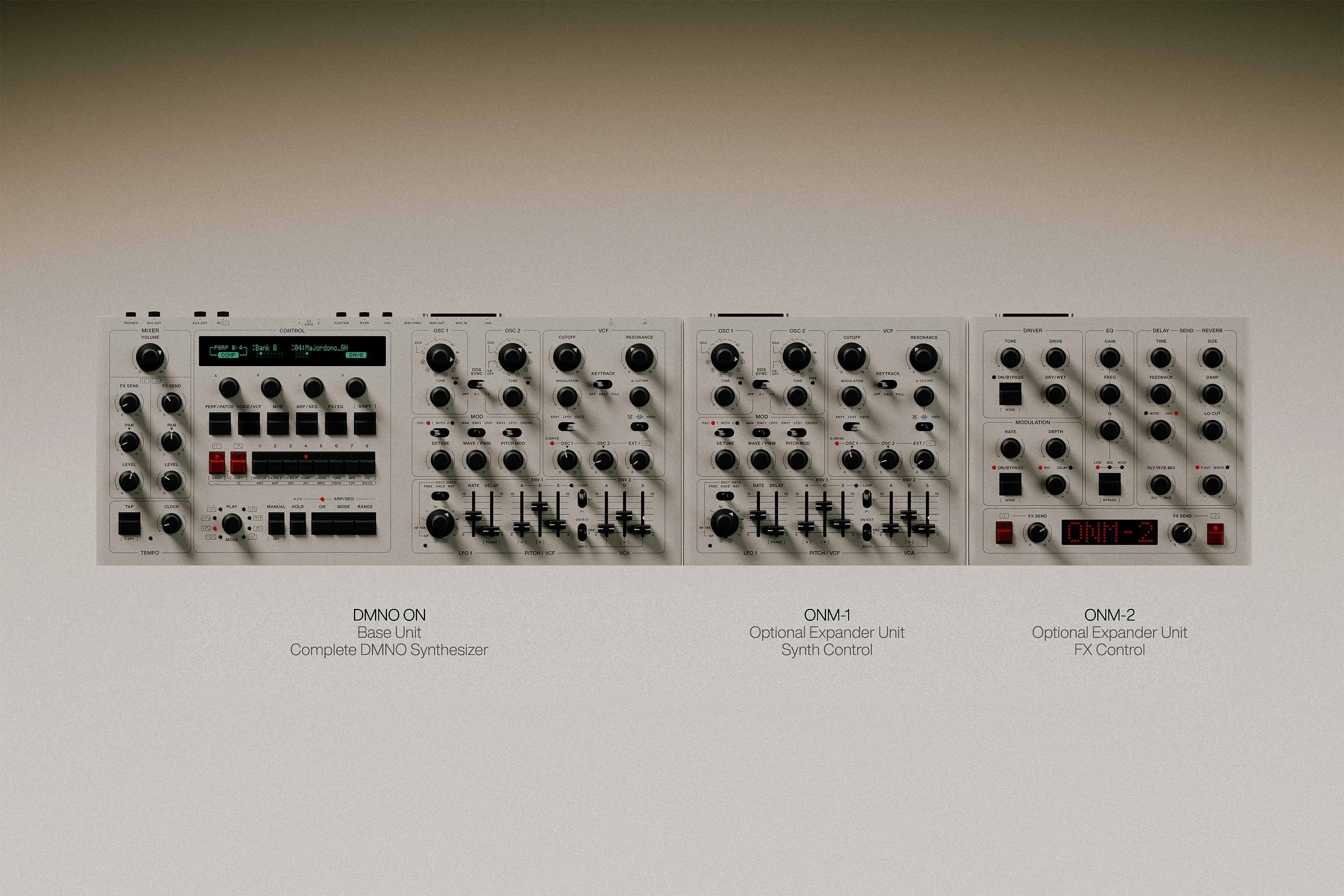

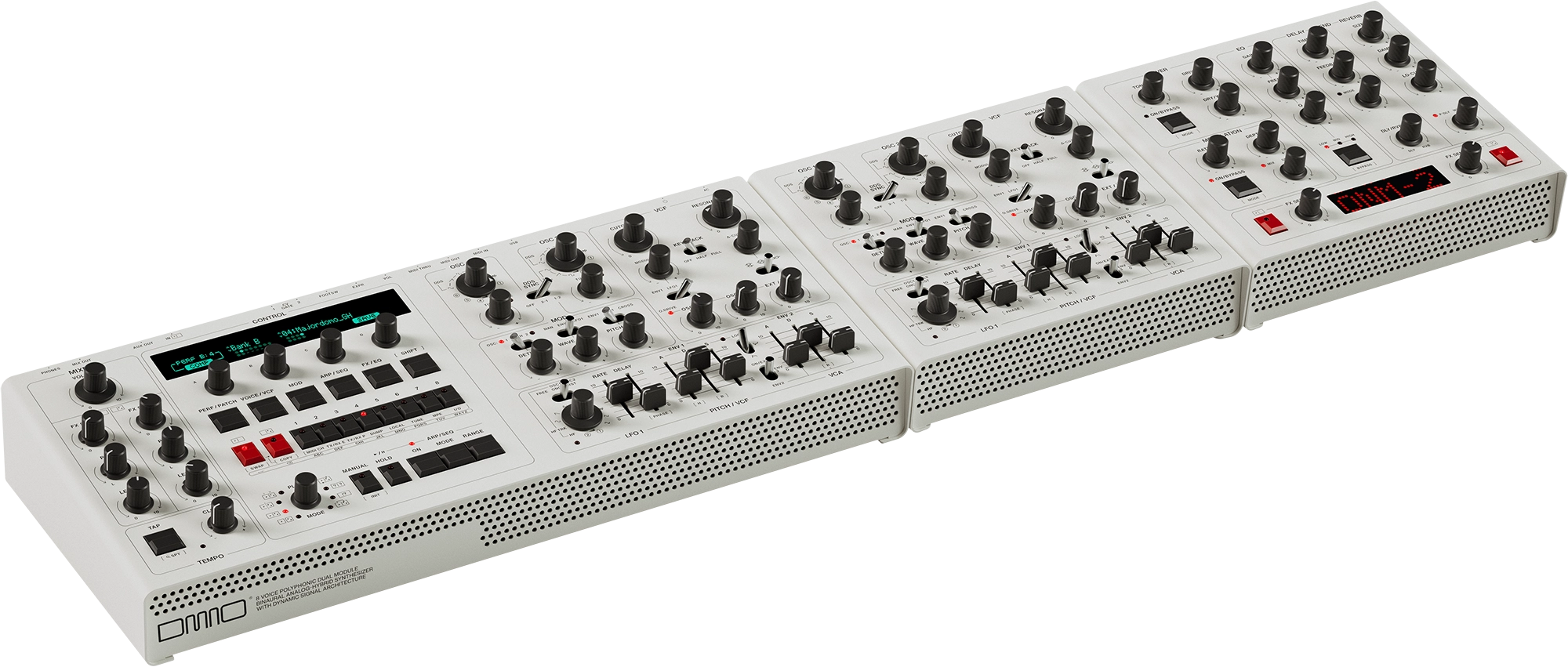

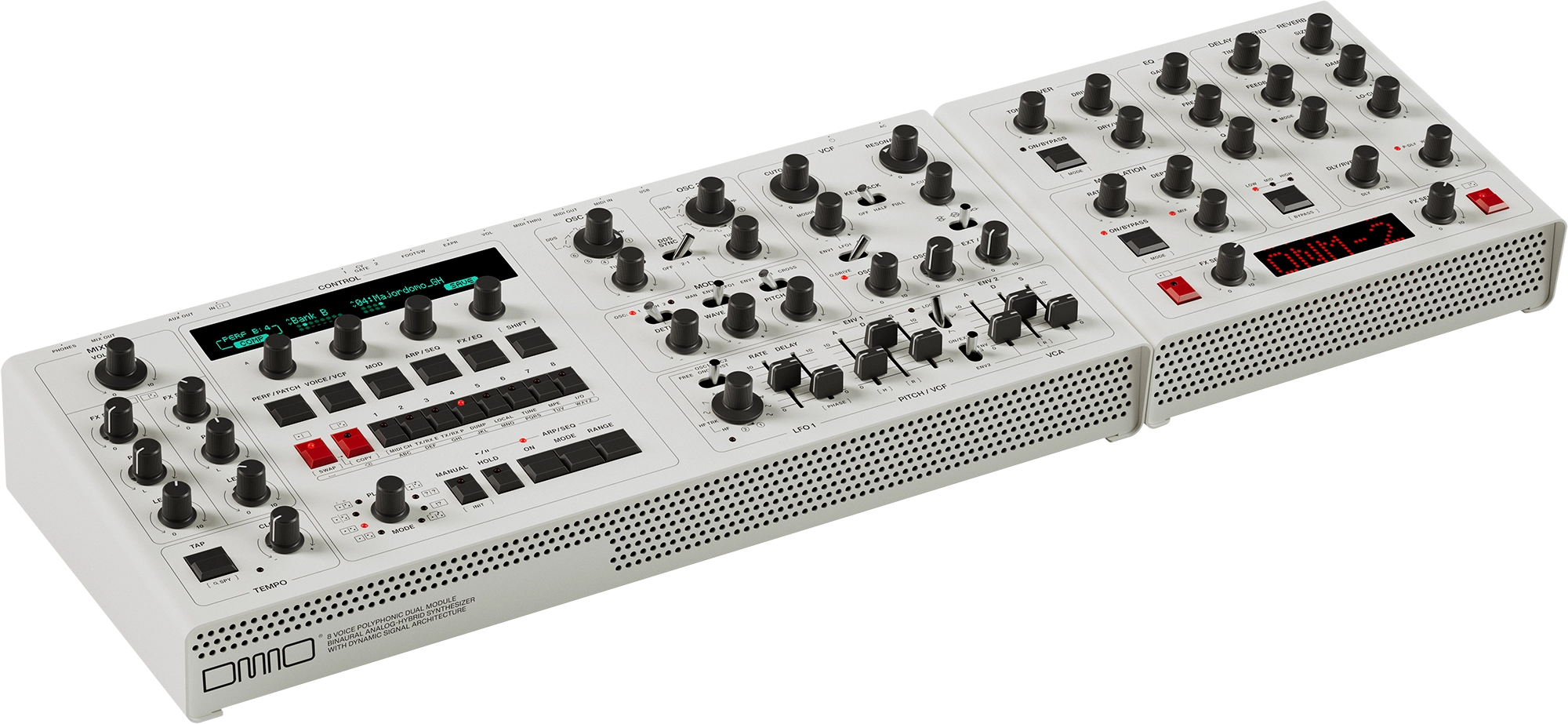

ONM-1 + ONM-2 — Optional Expander Modules
DMNO ON — VESA Compatible

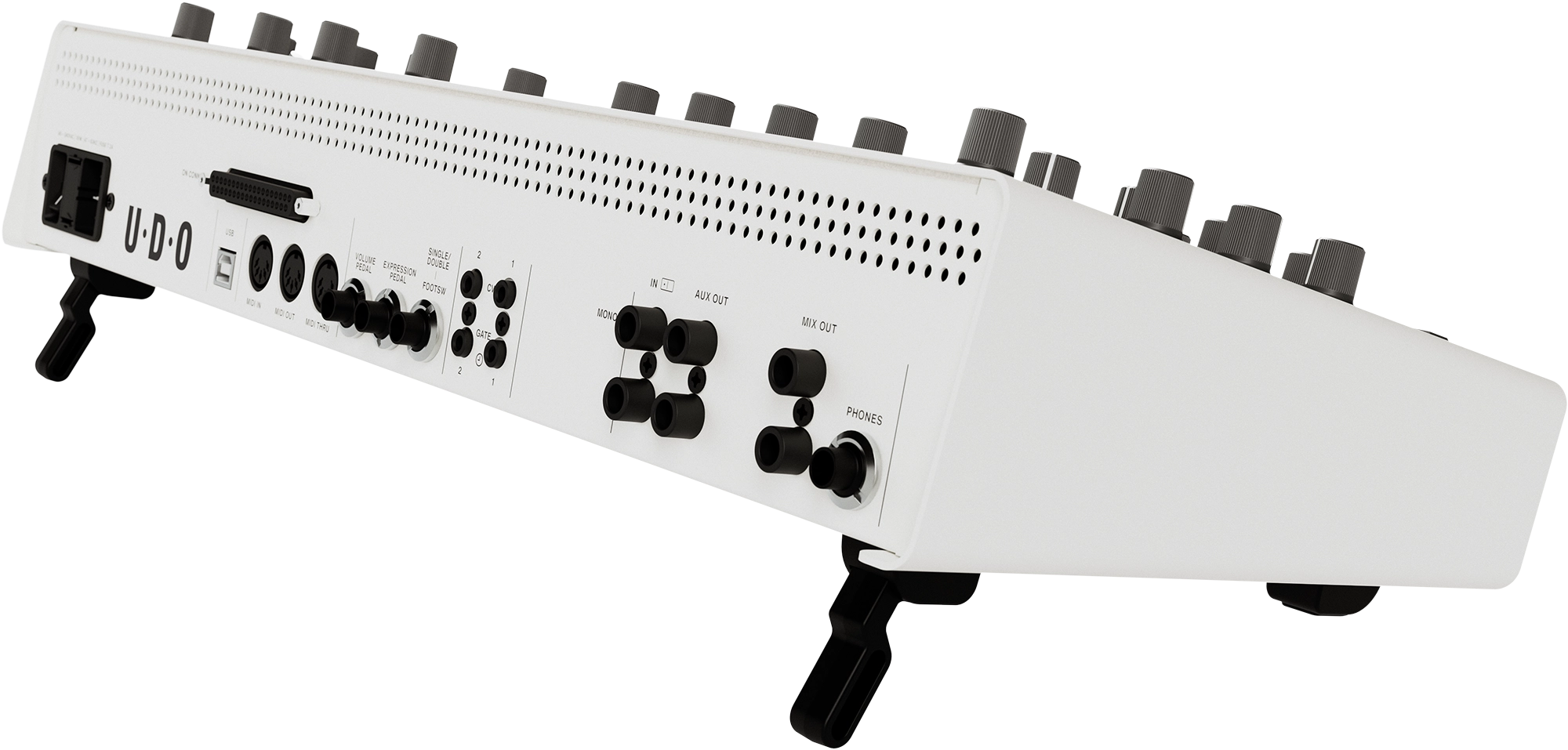

DMNO ON — Flip-Up Rear Feet
02
Overview
A new approach to analog. DMNO merges UDO’s championed hybrid sound with a cutting-edge, playful, and performative control architecture. Eight-voice polyphony, dual hybrid binaural synth-engines, and the entirely new per-voice analog Dynamic Multi-Core Stereo Filter system deliver a deep sonic palette, from extreme, overdriven textural scenes to rich, organic analog warmth.
The ON system introduces expandable control. The base unit features a streamlined single control-set while retaining the full 8 voice bi-timbral synthesis engine. Add an ONM-1 Synth Control to recreate the dual DMNO layout, and/or an ONM-2 Effects Control for hands-on playability of the onboard effects engines. With a suite of ONM units planned, the ON ecosystem will grow to allow players to build and shape the instrument around their own workflow.
At the heart of DMNO is the Play Modes system. Instantly reconfigure the internal architecture at the touch of a single control with eight carefully curated modes that redefine how the two timbres interact, with traditional splits and layers sitting alongside novel, creative, and unexpected configurations. Complementing this versatility is a suite of flexible connectivity options, including an analog audio input with preamplifier, gate generator, and envelope follower, CV/Gate connections for the analog realm, and a 24-bit USB class-compliant digital audio interface.
While the core UDO sound stands confidently on its own, DMNO also includes a high-resolution digital effects engine. Delay, reverb, EQ, distortion, chorus; each effect has been meticulously crafted, capable of subtle to extreme tones that are always musical, never abrasive (unless you want them to be). All of this is controlled via the best screen we could find: a beautifully sharp, yet somehow warm and organic, high-contrast electroluminescent glass vacuum fluorescent display (VFD).
02
Key Features
01
Stack Up. Knock Down.
The two fully-featured independent synthesizers (DMNO 1 & 2) take centre stage, each representing a complete timbral layer with its own oscillators, filters, modulation, and effects. Both DMNOs are driven by two ultra-high sample rate, high resolution FPGA-powered digital oscillators, each routed through an exceptionally powerful and versatile stereo analog filter (read on for more on the filters).
02
Goes With You.
Grows With You.
The ON System gives you the freedom to shape DMNO around the way you play. The base unit delivers the complete 8-voice, 2-part multitimbral synthesis engine in a streamlined desktop format, while optional ONM expansion modules let you add dedicated hands-on control where you need it. Connected via a robust, screw-locking D-Sub cable, the ONM units are plug-and-play with no additional power supply required. Recreate the dual-control set of the keyboard DMNO with an ONM-1 Synth Control, expand your effects workflow with the ONM-2 Effects Control, combine different modules to build a setup tailored to your playing style or preference.

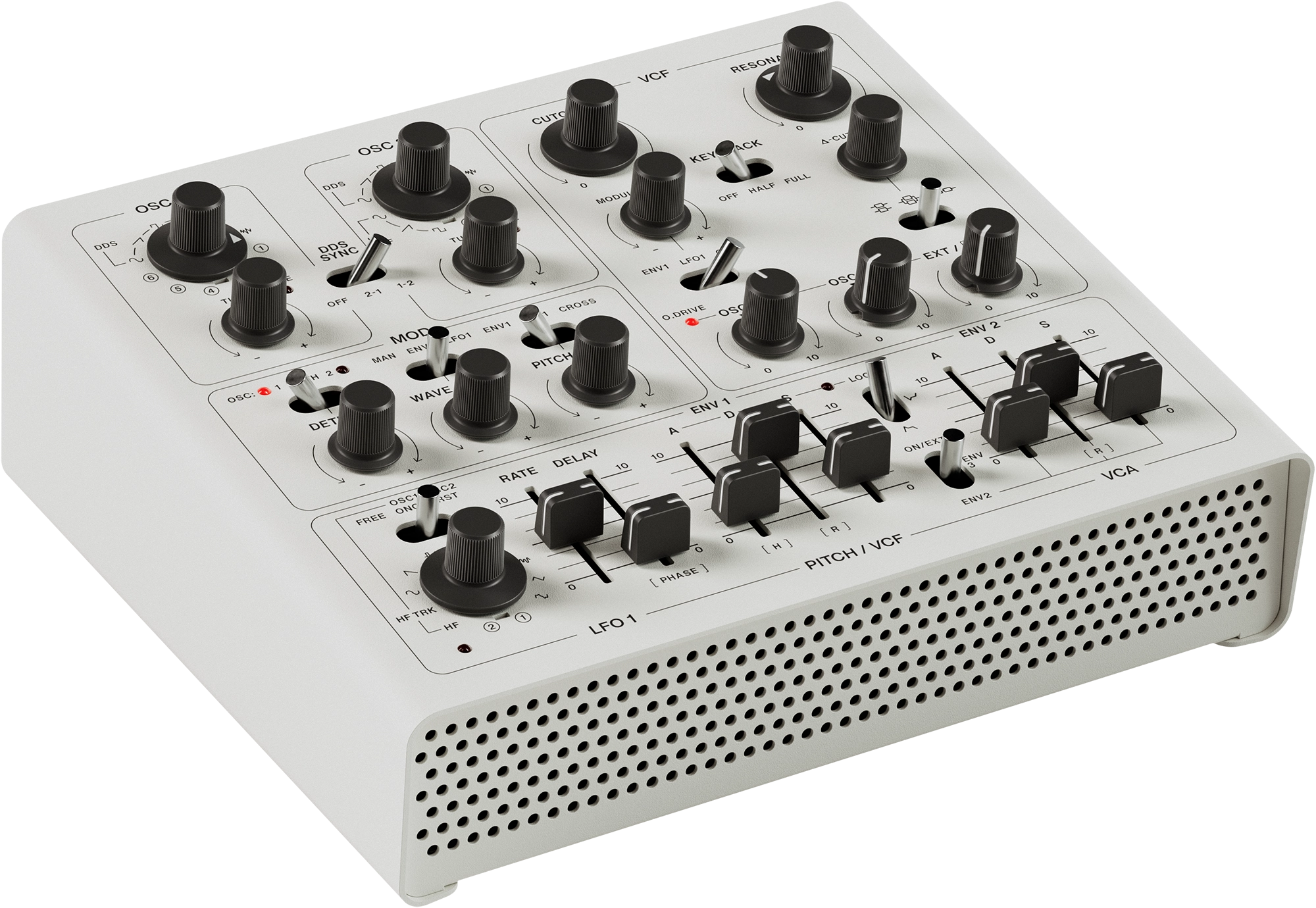

ONM-1: Synth Control

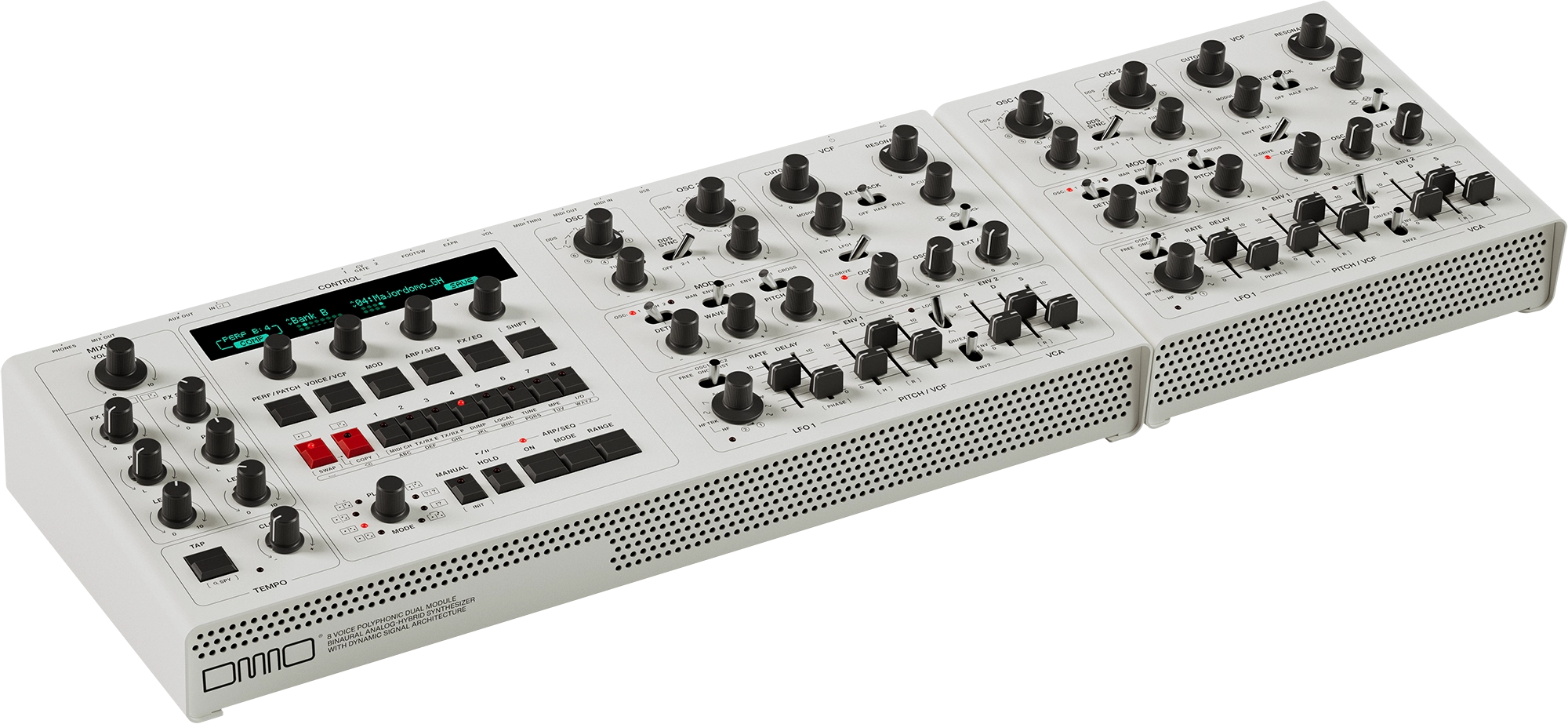

Adds a second synth control set to your DMNO ON base unit, giving you hands-on control of the two DMNOs (timbres) simultaneously. This allows players to recreate the full dual-panel layout of the bigger sibling, the keyboard DMNO.
Optional Extra — Available At Launch

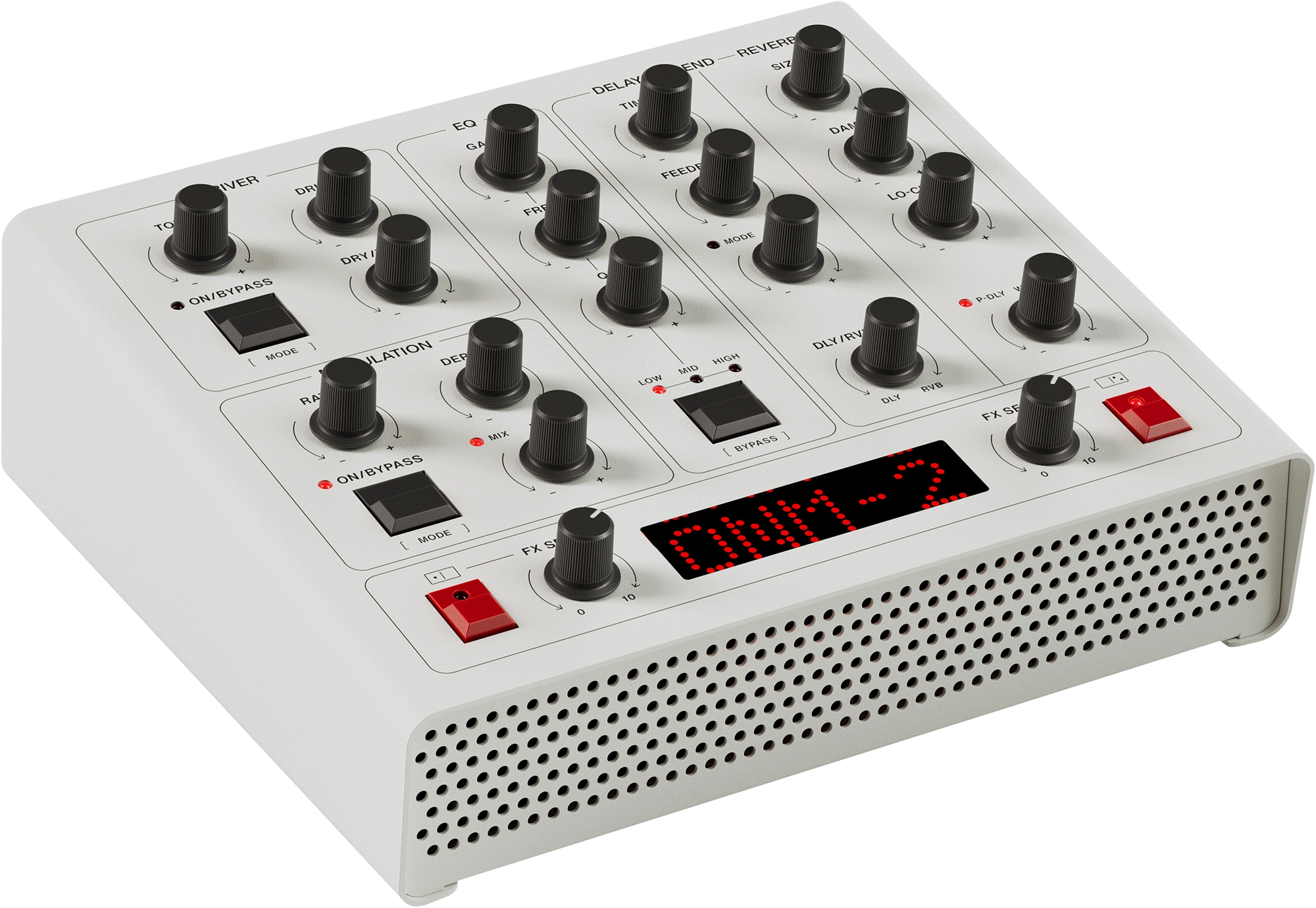

ONM-2: FX Control
Adds hands-on control of DMNO’s onboard effects engines, previously only accessible via the onboard display. Breaking-out controls for the send and insert effects parameters and the 3-band EQ. Get live readouts of your parameter changes with the onboard LED display.
Optional Extra — Coming Soon
03

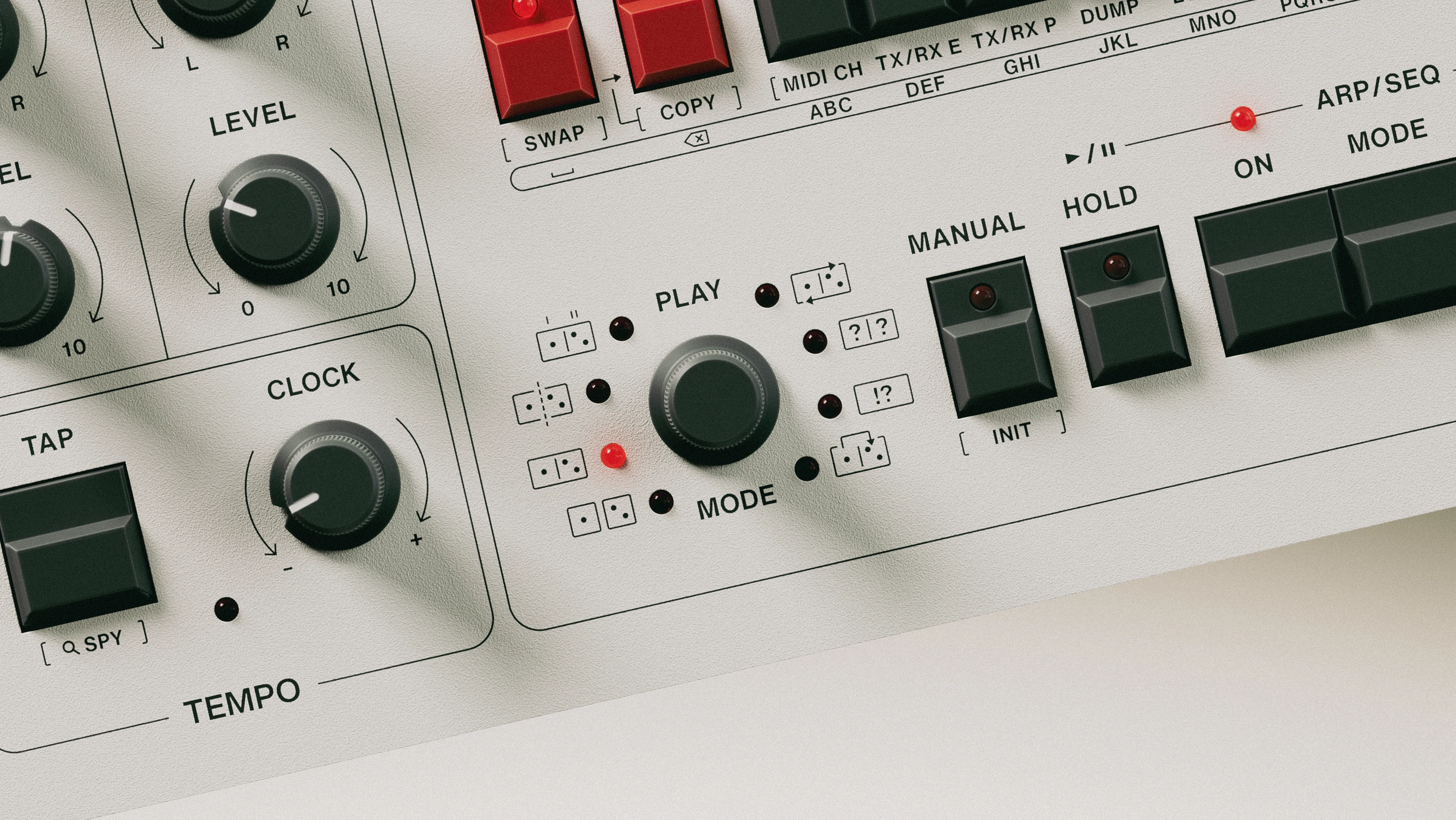

Play Modes:
Change Your Game
Featuring eight user-selectable Play Modes that redefine how its two independent synth engines interact, ranging from classic splits and layers to dynamic, creative, and unexpected routings. With the touch of a single control, voices and timbres can be stacked or divided, letting Play Modes instantly transform the instrument’s behaviour, unlocking new sounds, new interactions, and entirely happy accidents.
Single
Play only one DMNO.
Dual
Play both DMNOs simultaneously.
Split
Split keyboard into DMNOs 1 & 2.
One-Two
First key press is DMNO 1, following are DMNO 2.
Rotate
Alternate between DMNO 1 & 2.
Random
Random DMNO 1 / 2.
Chaos
Random DMNO and curated note randomisation.
Cascade
DMNO 1 audio output is used as a complex oscillator and routed into the DMNO 2 oscillator mixer.
04

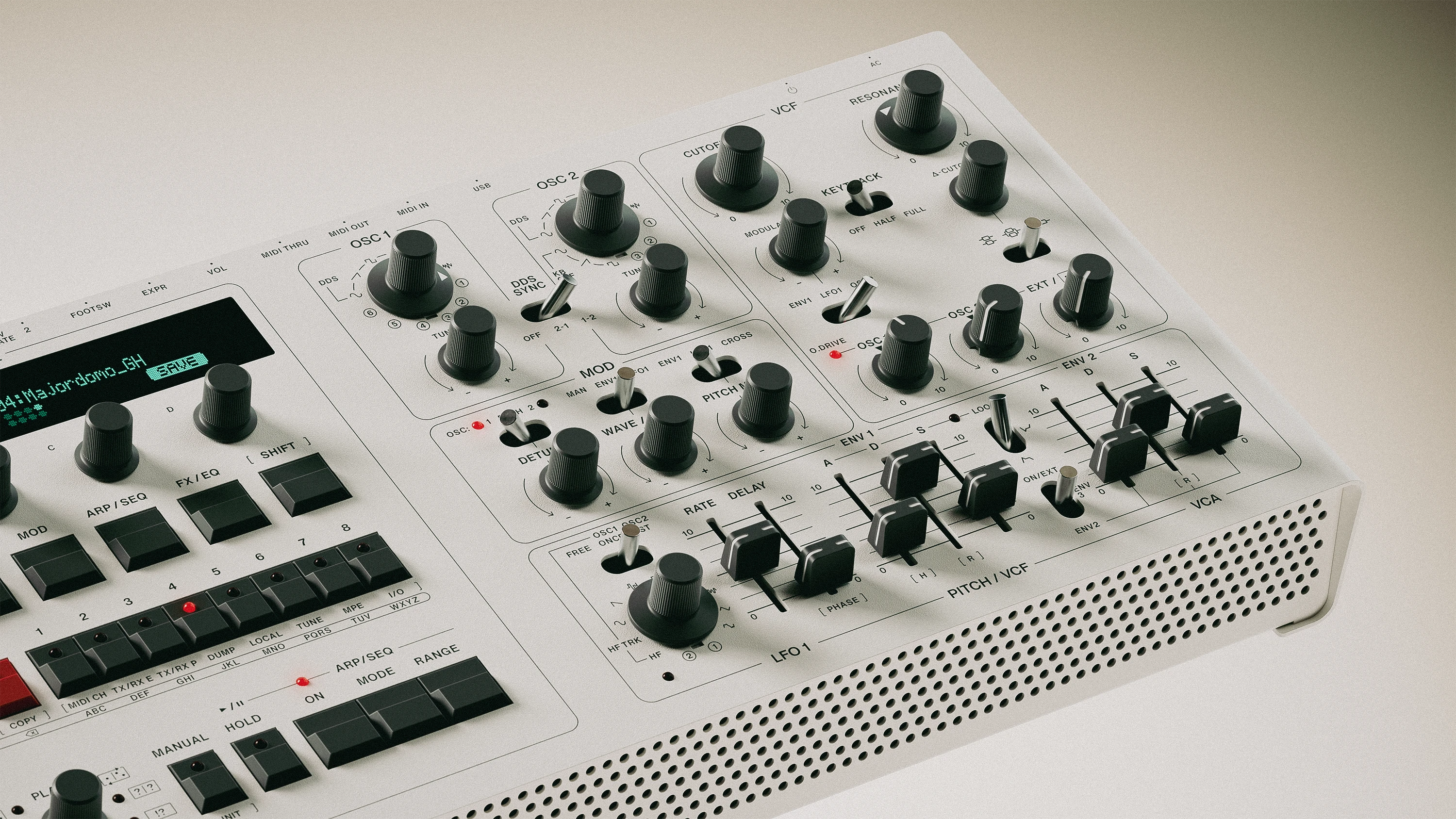

Our Most Flexible Filter(s) Yet
The twin analog Dynamic Multi-Core Stereo filters are uniquely powerful and flexible. Utilizing a novel, reconfigurable voltage-controlled topology, with a beautiful warm sound and comprehensive configuration options. The filter pairs can be in series, parallel, or stereo mode, with each configuration offering a wealth of filter modes — ranging from classic, recognizable shapes to bold, experimental options — all while maintaining a deeply musical character.
05
Connect Completely

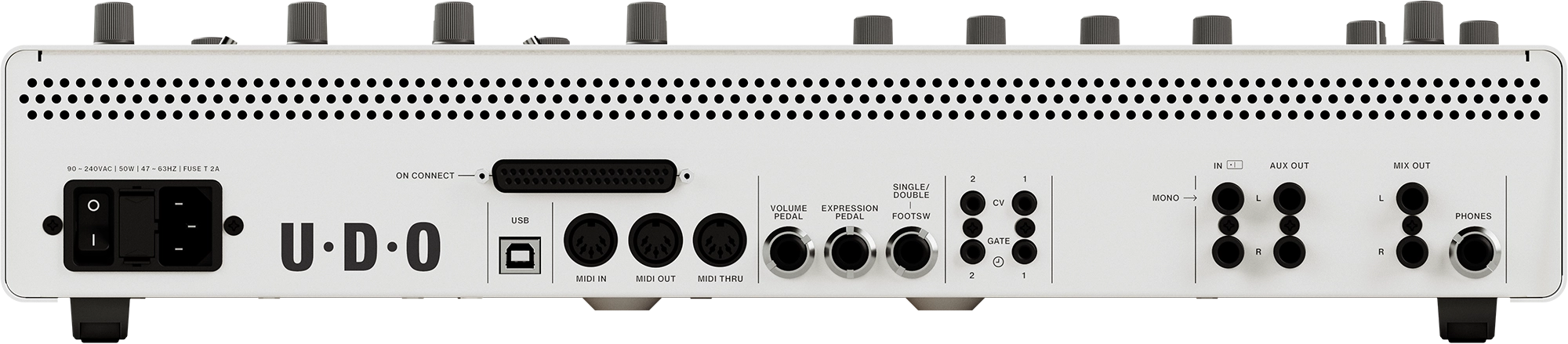

Integrate seamlessly into any setup with DMNO’s comprehensive and meticulously designed suite of studio connectivity capabilities. Built-in USB audio interface functionality enables a direct 2-in 2-out connection to your computer or DAW, whilst the flexible audio I/O options include creative features such as an external audio input with variable-gain preamplifier, gate generator and envelope-follower integrated into the mod matrix.
06

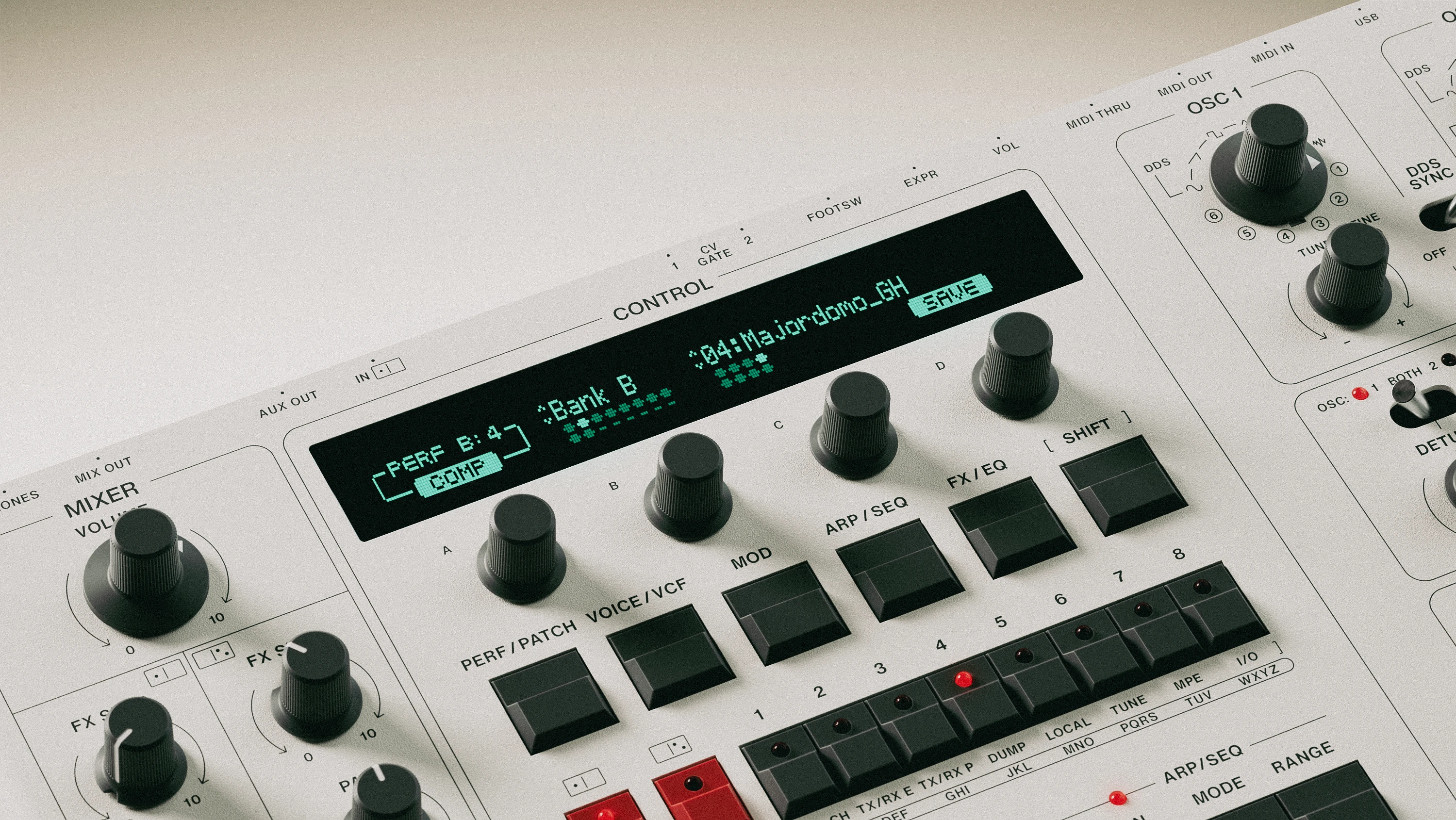

Crystal Clear
DMNO’s display puts everything at your fingertips, from patch and performance management to instrument voicing, filter exploration, effects controls, and a powerful sequencer. Every parameter is exactly where you need it. No deep menus, no digging. All presented on the best screen we could get our hands on: a beautifully high-contrast, long lasting, electroluminescent glass vacuum fluorescent display (VFD) with an ultra-wide viewing angle.
Sound. Engineering. Design
Play Seriously.
These features come together to form an instrument more than the sum of its parts. DMNO fully embodies, and elevates, the UDO ethos: ‘The Power of Play’. Where the Super Series synths knock politely and enter with elegance, DMNO kicks the door down. It is unapologetically bold, deeply expressive, and (most importantly) immensely fun. Lose yourself in the world of DMNO, with it’s no-compromise build quality and components, creative connectivity options, and an unparalleled hybrid architecture capable of delivering subtle warmth alongside extreme tones that always remain musical.
8 Voice
4 Voice in binaural mode
2-part multitimbral
2 complete independent synths
COMPACT DESKTOP FORMAT
expandable control
with the on system
super-wave oscillators
fpga powered
dynamic multi-core stereo vcf
per voice
binaural analog signal path
creative i/o connectivity
digital / analog flexibility
delay, reverb, distortion, chorus
multi-mode arpeggiator
with smart hold
VESA COMPATIBLE
rugged build quality
instruments for life
highest quality components
zero compromise
04
Explainers
What Does It All Mean?
FPGA Digital Oscillators
DMNO leverages the power of ultra-precision FPGA digital oscillators for a direct and alias-free sound source. This cutting-edge technology combined with archetypal analog components and sound sources provides a rich and flexible sonic canvas that can be sculpted for warm basses, expansive pads, and sparkling leads.
Binaural Analog Signal Path
Binaural refers to the twin synthesizer signal paths. In Binaural mode, each channel (ear) has a complete synthesizer voice. You can detune and de-phase the left and right oscillators, amplitude and filter (and indeed other parameters) relative to each-other. Ranging from subtle to extreme, this unique feature allows for experimenting with the 'width' of the sound and creates an improved sense of 3D positioning. It has in this sense one “super voices” for every two “conventional” voices.
8 Polyphonic Voices
DMNO employs a 8 voices in standard mode, with the option of twinning them to create 4 voices in Binaural mode. In this mode, the synthesizer offers 4 'super' voices, compared to the full 8 in standard mode, allowing for rich spatial effects while maintaining polyphonic performance.
2-Part Multitimbral
Multitimbral refers to a synthesizer's ability to play two or more different sounds (or timbres) simultaneously. This means you can split the keyboard to play one sound on the left and another on the right, or layer two sounds together for a richer, more complex tone. Multitimbrality offers more creative flexibility, especially for live performance or complex sound design.
No-Compromise Build
An instrument is cherished not just for the way it sounds but also for the way it feels to play. We build our instruments to the highest standards, with precision engineering alongside premium materials and components. Every detail is designed for durability, reliability, and a truly hands-on experience.

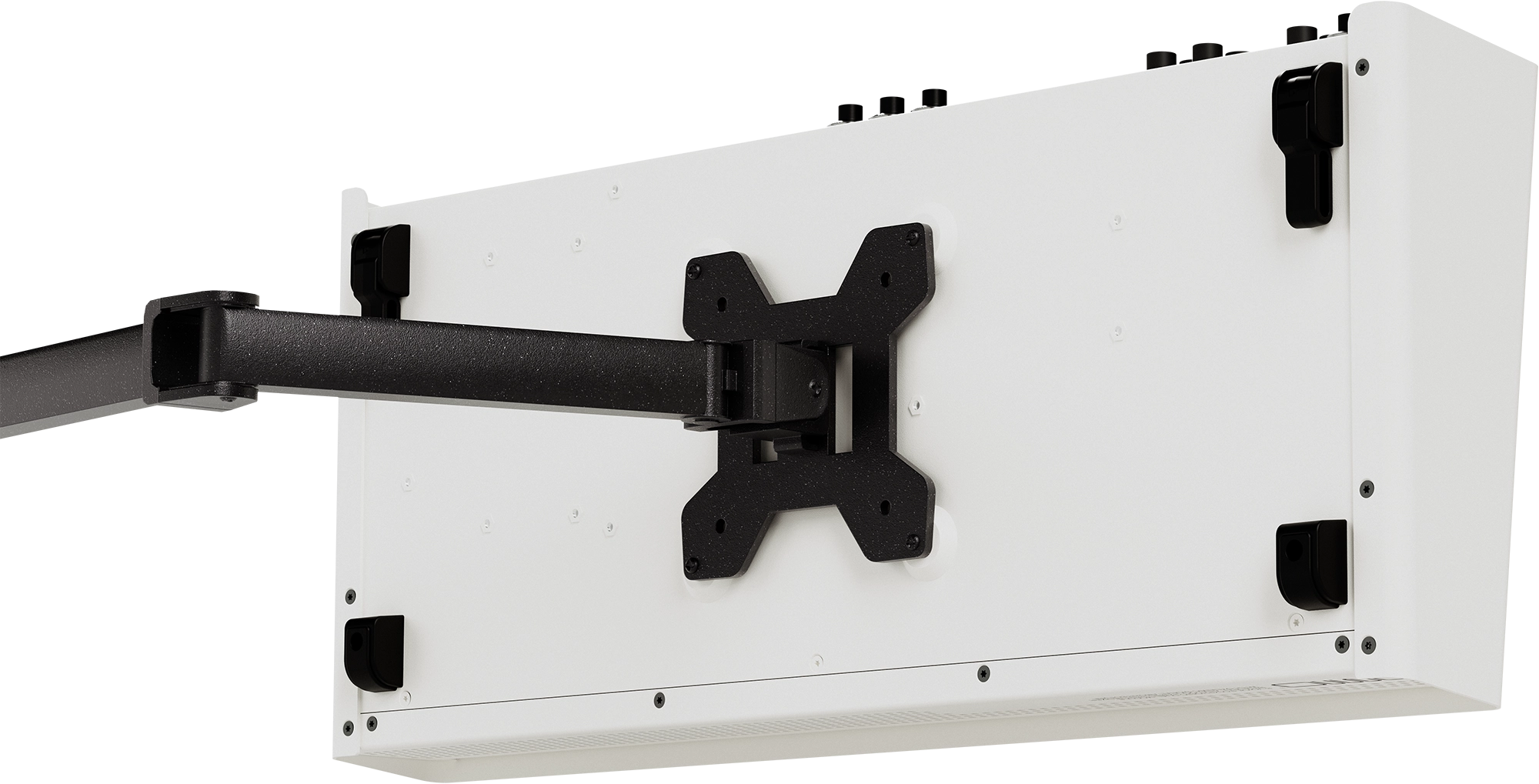

VESA Compatible
VESA-compatible mounting points on the rear of the instrument let you attach it to a compatible monitor arm, freeing up desk space and making it easy to position the the units where you want them.
05
Tech Spec
DMNO ON Technical Specifications
Overview
Full-featured UDO DMNO synthesizer in a compact desktop format.
Expandable control-set via ONM Expander Modules.
8 voice polyphonic, with 4 ‘super’ voices when in Binaural mode. Binaural mode gives each channel (ear) a full synthesizer voice with independent detuning and modulation, creating an expansive, rich and texturally wide sound.
2-Part Multitimbral, comprising 2 independent hybrid synthesizers.
8 selectable ‘Play Modes’ that immediately reconfigure DMNO’s signal flow, redefining how its two independent synth engines interact with one another.
Dynamic multi-core stereo analog VCF with parallel, series and stereo connection modes — featuring multiple filter modes for each connection type.
Hybrid architecture: FPGA-based high-resolution digital oscillators paired with an analog signal path and a high-quality DSP effects engine.
2-in 2-out 24-bit USB digital audio interface.
Stereo external audio input with a variable-gain preamplifier, gate level detector, and envelope-follower input to the modulation matrix.
Stereo auxiliary output that can be assigned to either DMNO 1/2, USB digital audio from the connected host, or the effects send bus.
Two individual user-assignable CV & gate/clock outputs via 1/8”/3.5mm sockets.
High quality long-lasting electroluminescent glass vacuum fluorescent display (VFD) with dedicated rotary controls. Designed for immediacy with no deep menus and limited ‘hidden’ controls.
32-bit DSP digital effects chain including delay, reverb, EQ, overdrive
distortion and chorus.
